Liquid Cooling Energy Storage System
Ultimate Safety Architecture: Multi-level battery protection with rapid fuse technology and intelligent leakage detection. Equipped with aerosol fire suppression for uncompromising safety.
High Integration & Density: A compact 20ft container design delivering up to 5.01MWh energy density. Fully pre-assembled for plug-and-play installation in under 8 hours.
Extended Lifespan & Efficiency: Advanced liquid cooling (50% Ethylene Glycol) ensures uniform temperature control, extending battery cycle life to over 8,000 cycles.
Smart O&M: Real-time BMS monitoring with fault positioning and recording. Supports CAN/Ethernet communication for seamless grid integration.

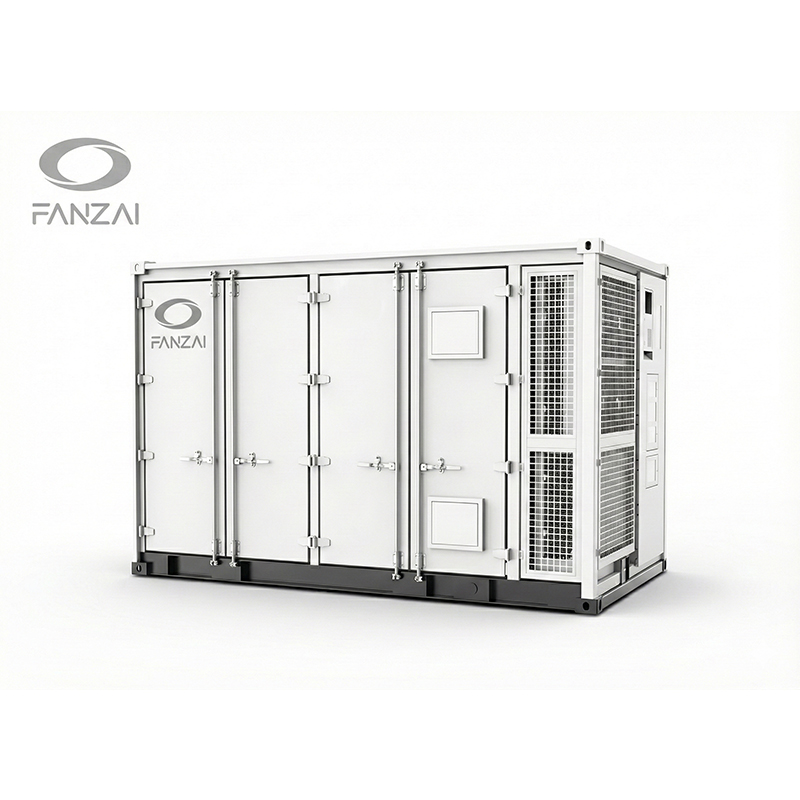

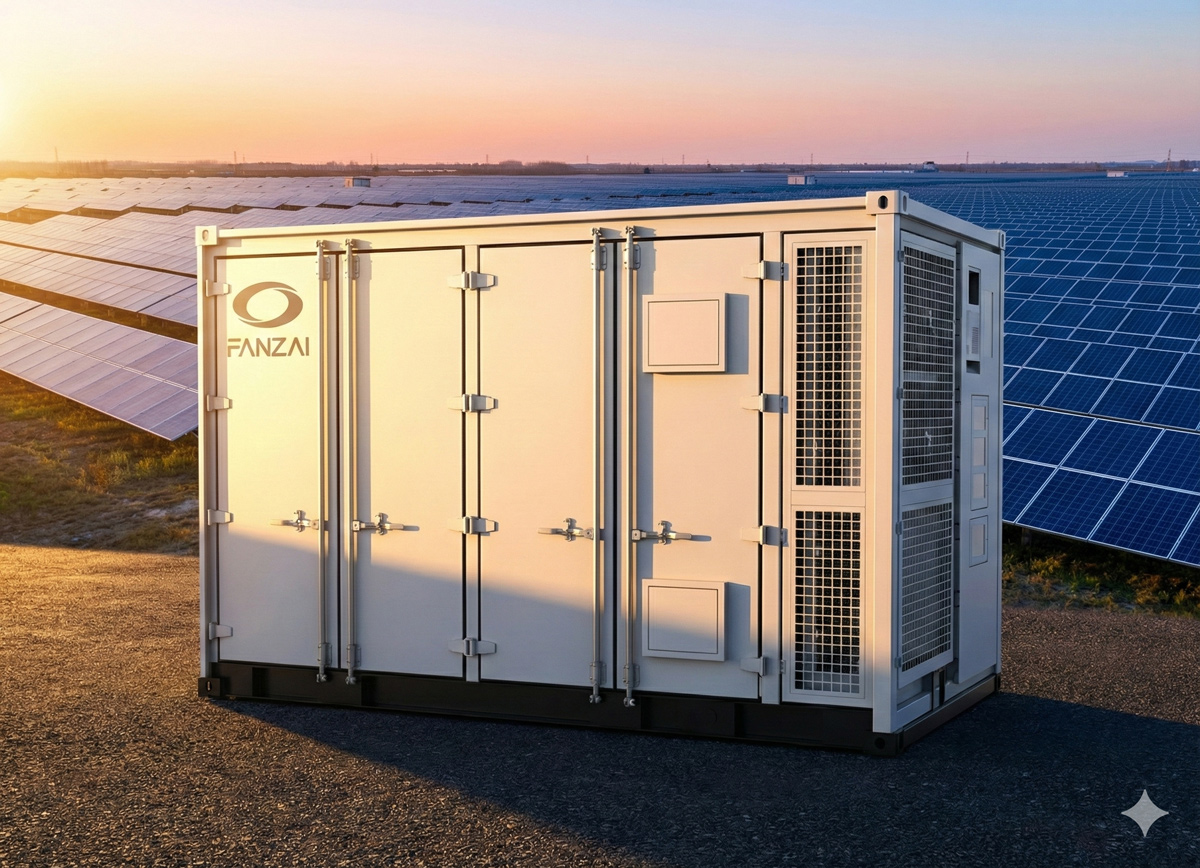

This product is a highly integrated 20ft containerized liquid-cooled energy storage system, designed for commercial, industrial, and grid-scale applications. It combines ultimate safety, high energy density, long service life, and intelligent O&M in a single turnkey solution. Equipped with 314Ah LFP battery cells, the system delivers up to 5.01 MWh per container. A multi-level battery protection architecture—featuring rapid fuse technology, intelligent leakage detection, and an integrated aerosol fire suppression system—ensures uncompromising safety.
Advanced liquid cooling with 50% ethylene glycol provides uniform thermal management, extending battery life to over 8,000 cycles. The system is fully pre-assembled and factory-tested, enabling plug-and-play installation within 8 hours. With real-time BMS monitoring, precise fault localization, and seamless CAN/Ethernet communication, it offers a reliable, efficient, and smart energy storage solution for modern power systems.
Technical Parameters (FZ-LS-F1 Series)
Feature | FZ-LS-F1-3M | FZ-LS-F1-5M |
Total Energy | 3343.97 kWh | 5015.96 kWh 6 |
System Configuration | 1P416S*8 | 1P416S*12 7 |
Cell Type | 314Ah LFP | 314Ah LFP 8 |
Rated Power (0.5P) | 1672 kW | 2500 kW 9 |
Dimensions | 6058 x 2438 x 2896 mm (20ft) | |
Cooling Method | Liquid Cooling | |
Protection | IP54 / C4 Anti-corrosion 12 | |
Certifications | CE, UN38.3, IEC62619, GB/T36276 | |
Product Details
Product Cases

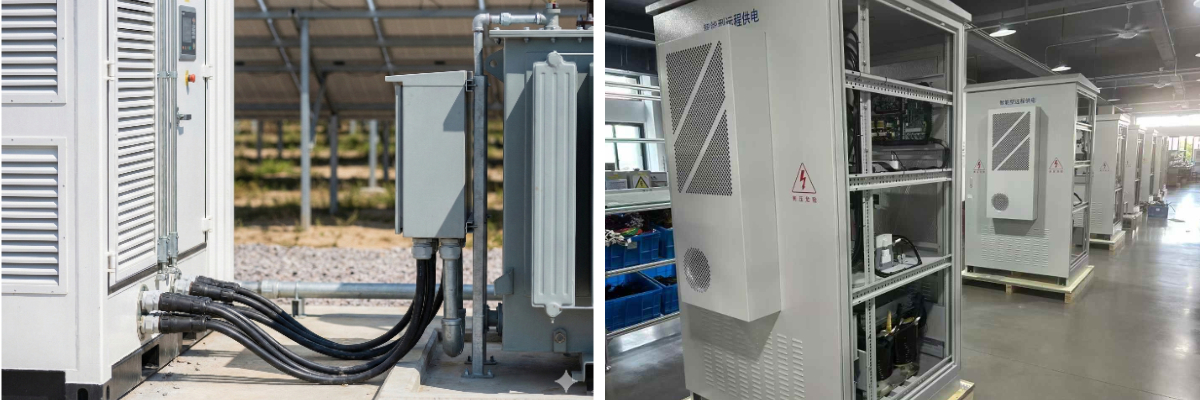

Commercial & Industrial Energy Storage
A large C&I energy user adopted our containerized energy storage battery cabinet to reduce peak electricity costs, improve power stability, and support sustainability goals. The solution was selected for its high energy density, modular design, and proven safety.
The pre-assembled containerized BESS integrates batteries, BMS, PCS, fire protection, thermal management, and intelligent monitoring, enabling fast deployment and stable operation.
After commissioning, the customer achieved lower peak demand charges, improved power reliability, higher energy efficiency, and a reduced carbon footprint through better renewable energy utilization.

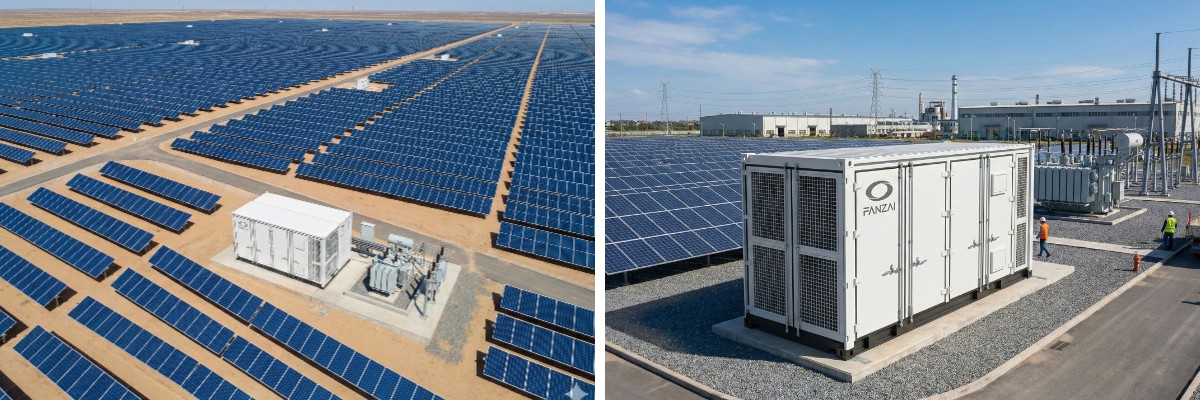

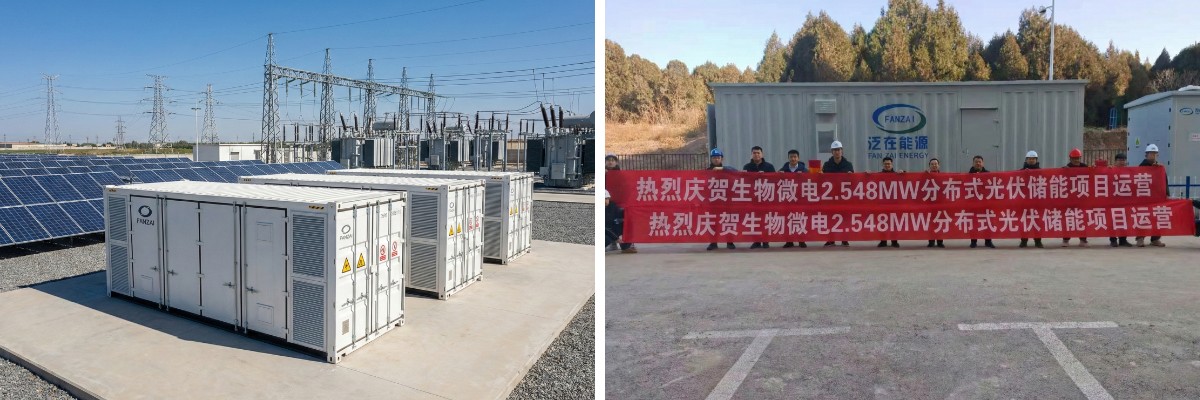

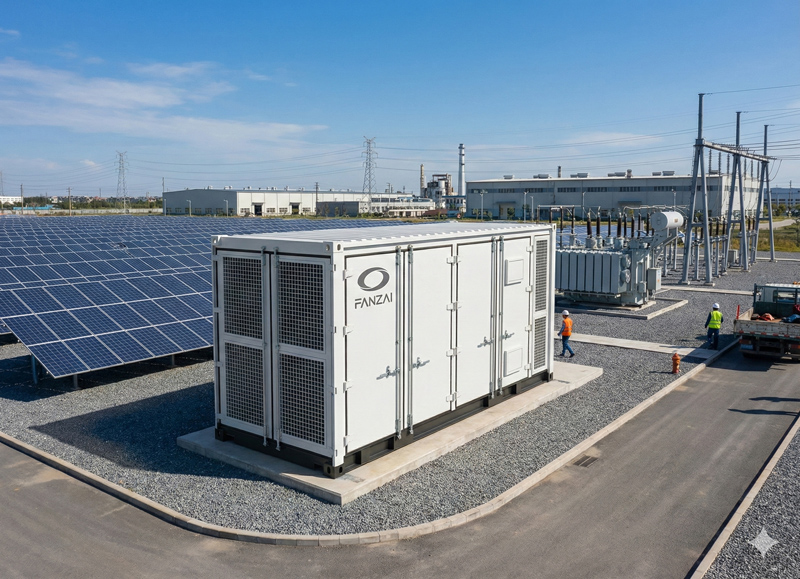

Distributed Solar PV + Energy Storage System
This project is a 2.548 MW distributed solar PV system integrated with a containerized energy storage solution, successfully commissioned and operating. EPC was delivered by Fanzai Energy, in cooperation with Licheng Holdings.
The PV + storage configuration improves energy utilization and grid stability, enabling peak shaving, load shifting, and higher on-site renewable energy consumption. With high integration, advanced safety, and intelligent energy management, the project demonstrates reliable long-term operation and showcases strong engineering capability in clean and low-carbon energy solutions.
Application scenarios
About Us
Development Path
2014
The founding team holds the belief in green energy, focuses on the photovoltaic industry, and officially set sail.
2016
The business volume has surged, the team has expanded rapidly, and the brand influence has remained at the forefront of the domestic photovoltaic market.
2019
The impact of the epidemic, policy adjustments, and intensified domestic trade competition have led to a firm start of the dual transformation.
2020
We have completed the upgrade of energy storage technology and resource integration, providing a one-stop solution for energy storage systems.
2024
As a system solution provider, we set sail to enter the international market.

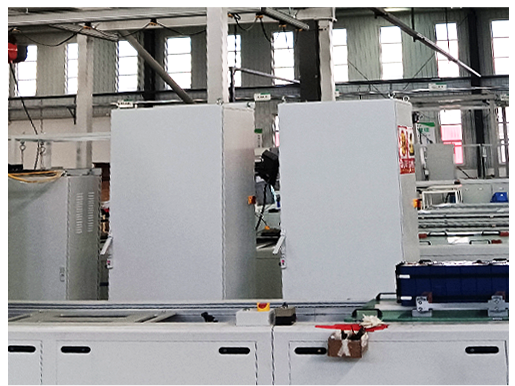

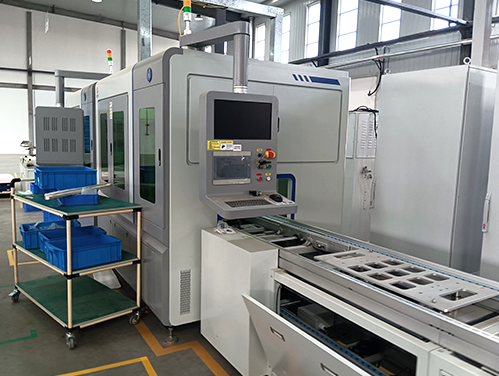

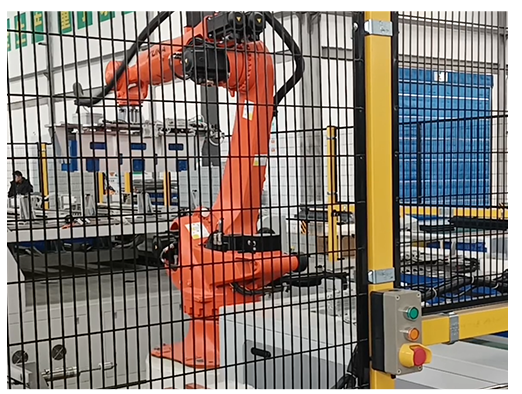

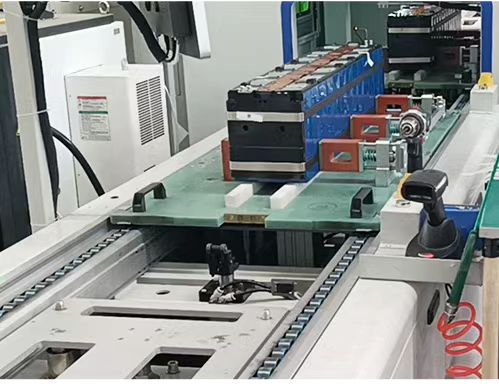

About Factory
|
|
|
|
Advanced Equipment | Strict Quality Control | Automated Production Lines | Intelligent Management |
