(FZ-CnI-F1-261K)
Product Details

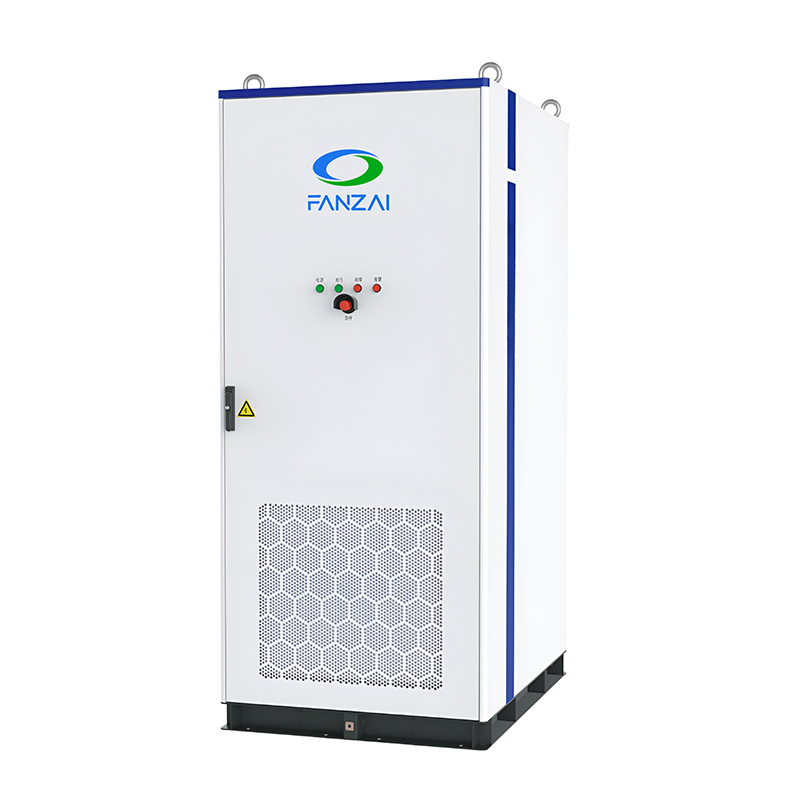

For businesses seeking powerful and efficient energy management, Our Commercial & Industrial system delivers 125-250 kW rated power and 261-522 kWh capacity in fully pre-assembled outdoor cabinets equipped with intelligent liquid cooling technology. This design enhances battery longevity with 8,000 cycles, superior system efficiency over 88%, and rapid on-site installation completed in just 8 hours.
Safety and integration are paramount, featuring fast-acting fuse protection, IP54 rating (with IP67 packs), low noise under 75 dB, and wide operating temperatures from -30°C to 55°C, allowing seamless grid connectivity and peak demand management in demanding industrial settings.
Compliant with international standards, this turnkey solution optimizes costs through 98% PCS efficiency and balanced charge/discharge ratios, supporting sustainable operations in factories, offices, and commercial facilities with reliable renewable integration and minimal downtime.
Product Advantages
Elevate efficiency: Intelligent liquid cooling technology enhances performance and extends battery life dramatically.
Uncompromised safety: Battery circuit management with rapid fuse protection for ultimate security.
Ready to deploy: Fully pre-assembled – skip the hassle of on-site module installation.
Quick setup: On-site installation in just 8 hours, getting you operational faster.
Power redefined: Rechargeable Lithium-ion Battery Energy Storage System for business excellence.
Massive output: Rated power of 125 kW or 250 kW to fuel your operations.
Flexible grid integration: Allowable voltage range of 400 V (-15%~10%) for seamless connectivity.
Steady frequency: Rated range of 50/60 Hz ±2.5 Hz for uninterrupted performance.
Technical Parameters
Feature | FZ-Cnl-F1-261K |
Total Energy | 261 kWh |
System Configuration | 1P260S |
Cell Type | 314Ah LFP |
Rated Power (0.5P) | 125 kW |
Voltage Range | 702 ~ 936 V |
AC Grid Voltage | 400 V (-15% ~ +10%) |
Grid Frequency | 50 / 60 Hz ±2.5 Hz |
Rated Current | 180 A |
PCS Max. Efficiency | 98% |

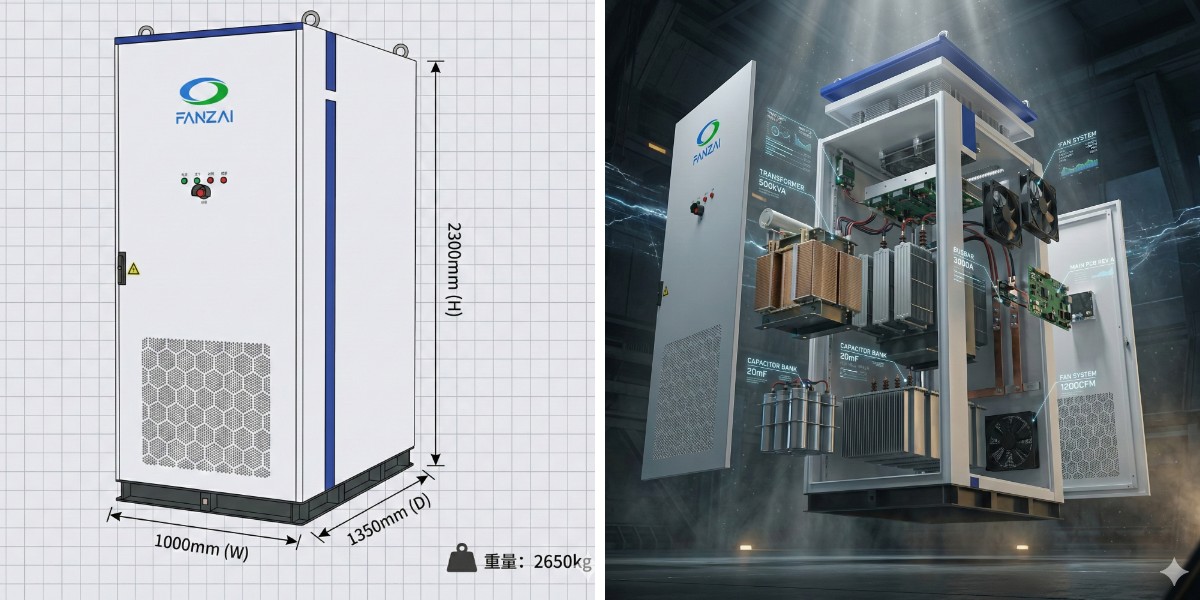

Dimensions | 1000 × 1350 × 2300 mm |
Weight | 2650 kg |
Cooling Method | Liquid Cooling |
Noise Level | ＜75 dB |
Protection | IP54 (Pack: IP67) |
Fire Suppression | Aerosol |
Communication | Ethernet / CAN / RS485 |
Communication Protocol | MODBUS-TCP |
Cycle Life | ≥8000 cycles |
Operating Temperature | -30 ℃ ~ +55 ℃ |
Humidity | ＜95% RH |
Max. Altitude | ≤2000 m |
Certifications | UN38.3, IEC62477, IEC62619, IEC63056, GB/T 34120, GB/T 36276 |

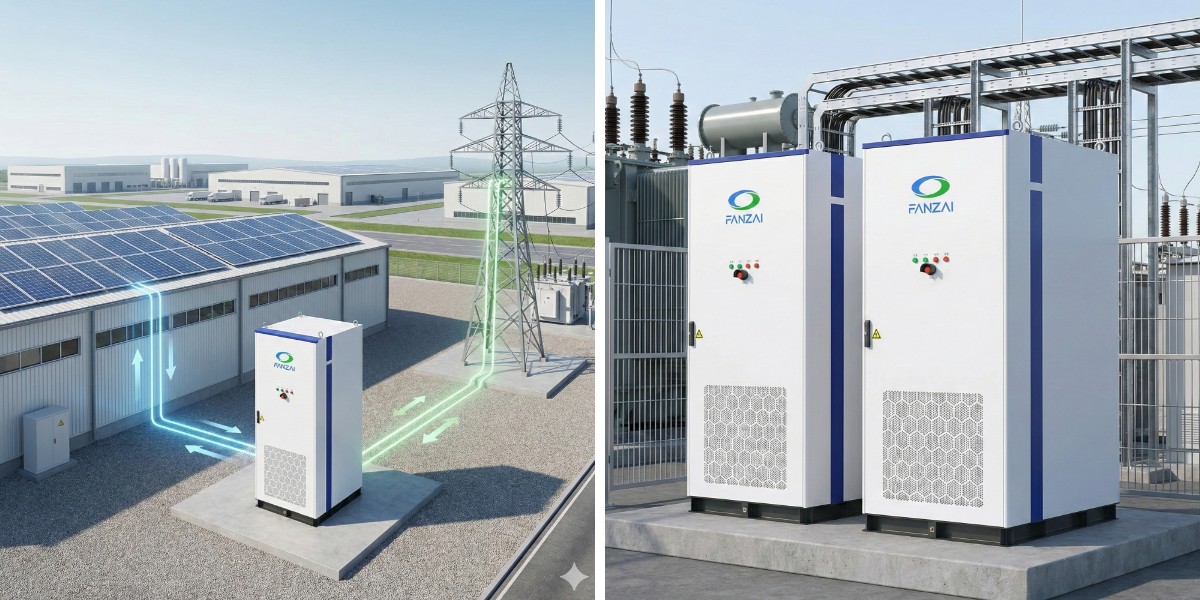

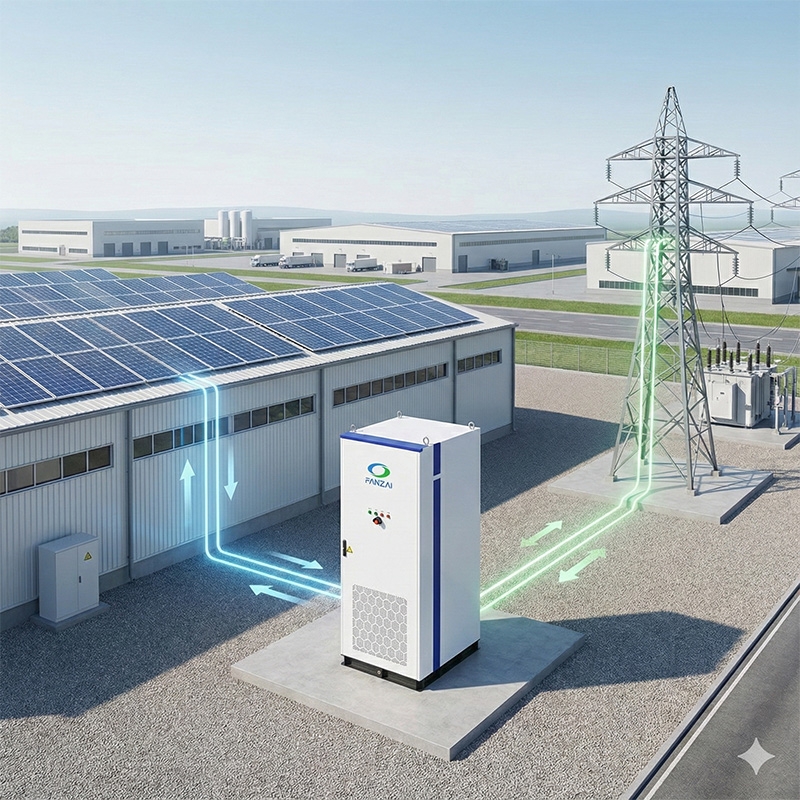

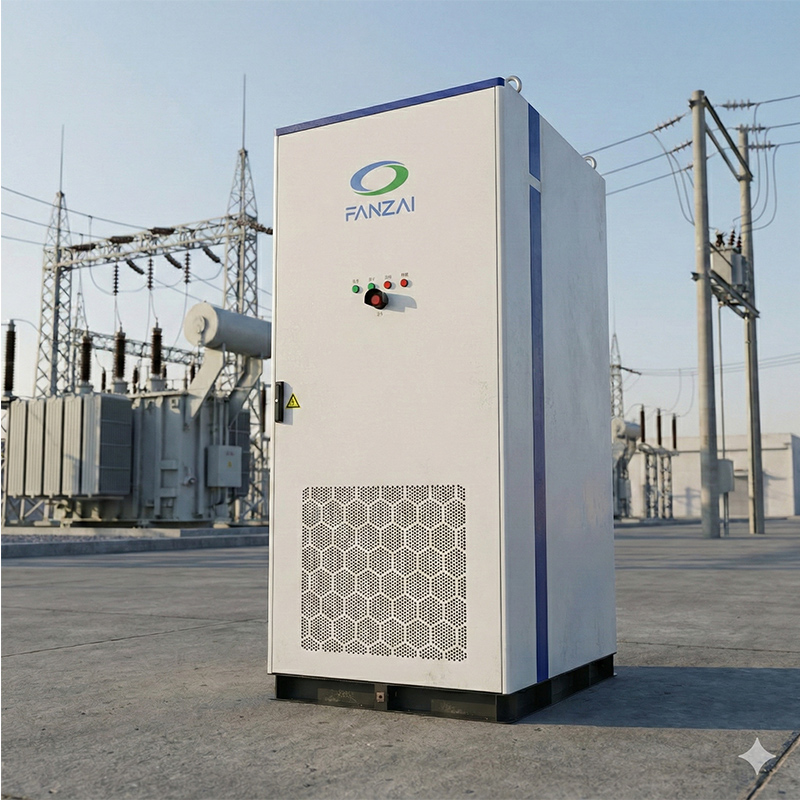

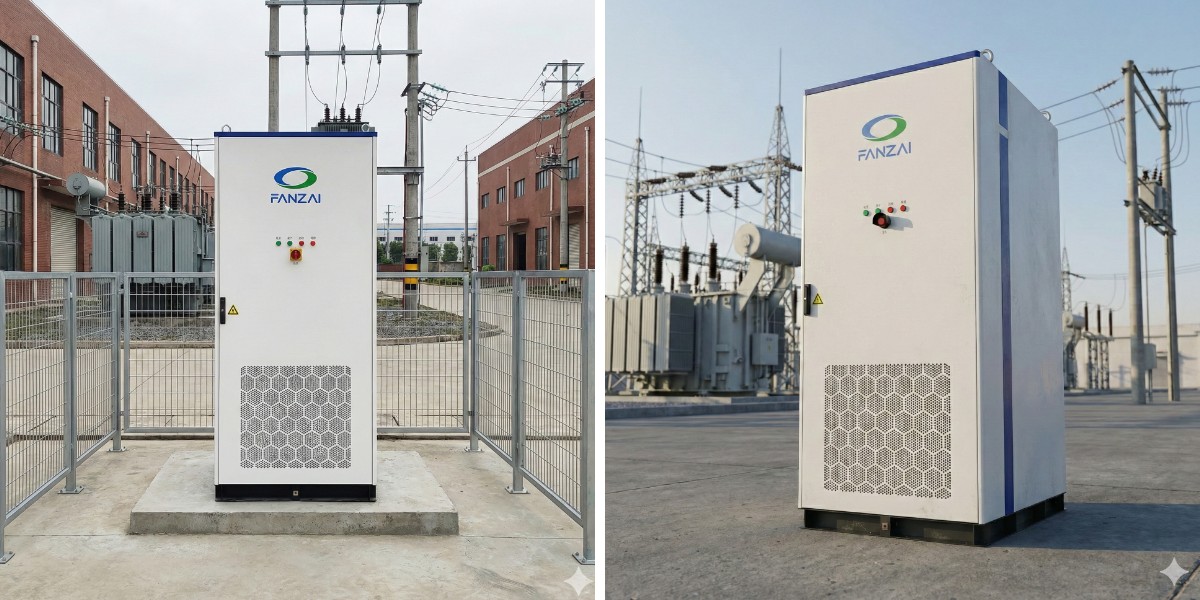

Application scenarios

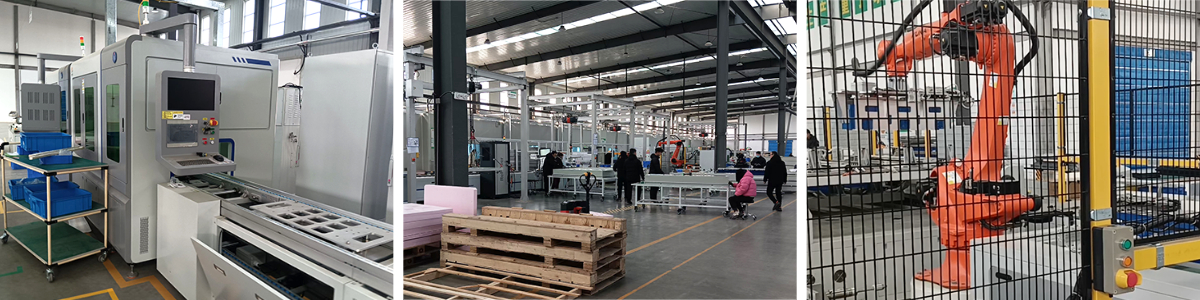

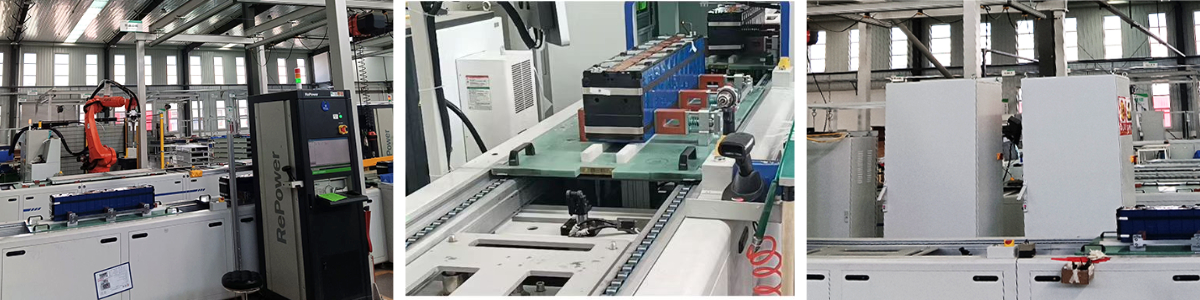

About Factory
