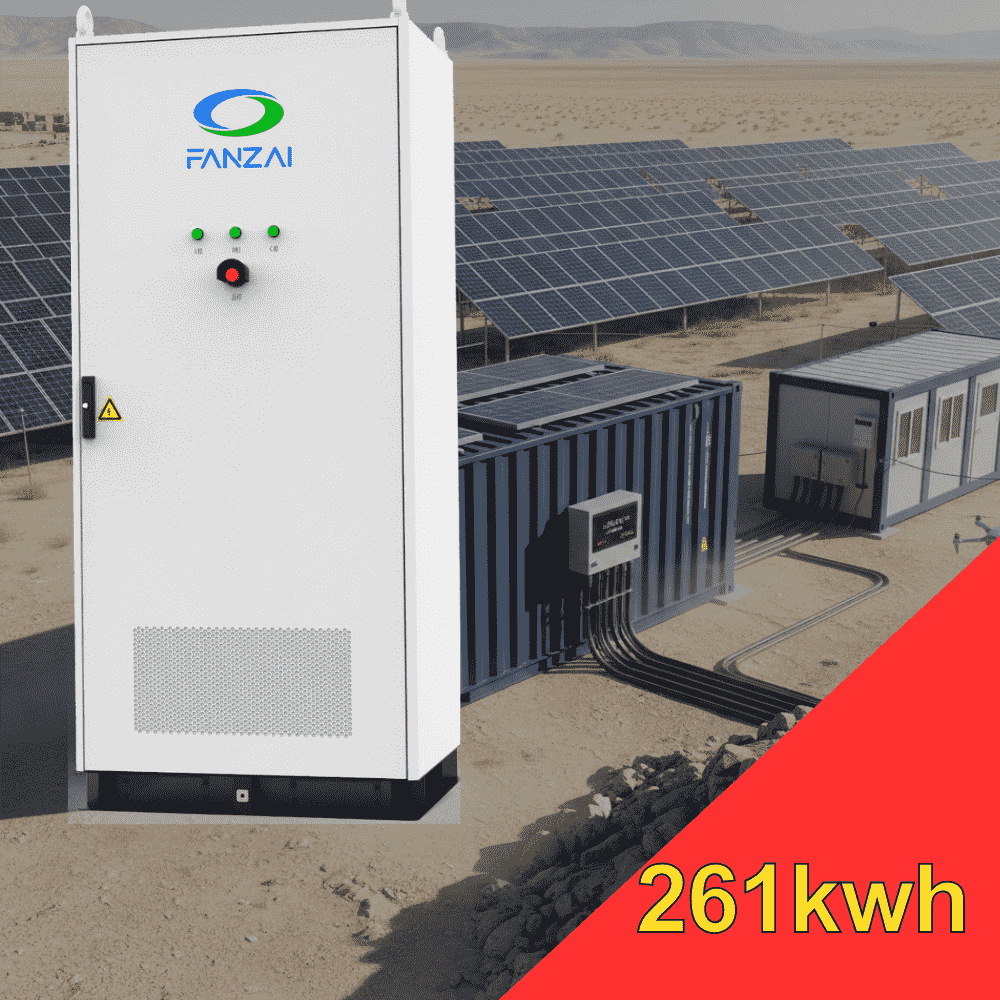

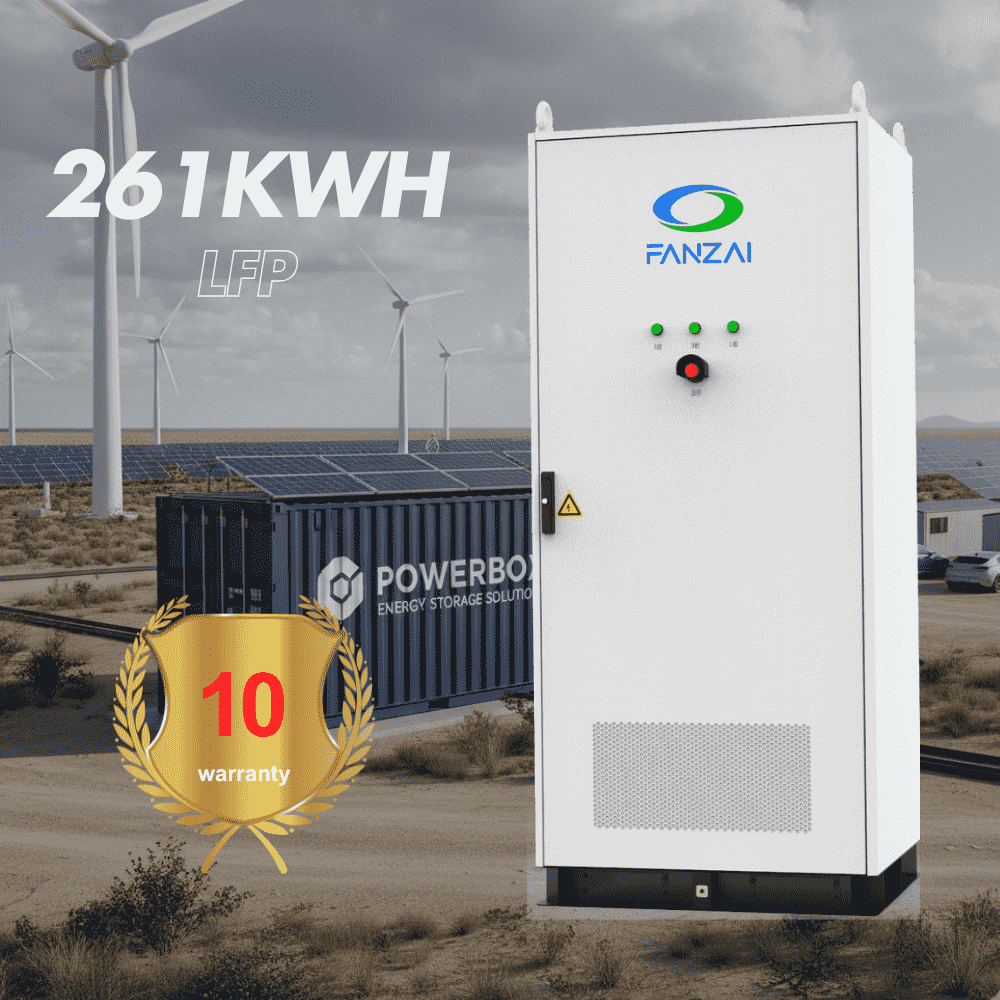

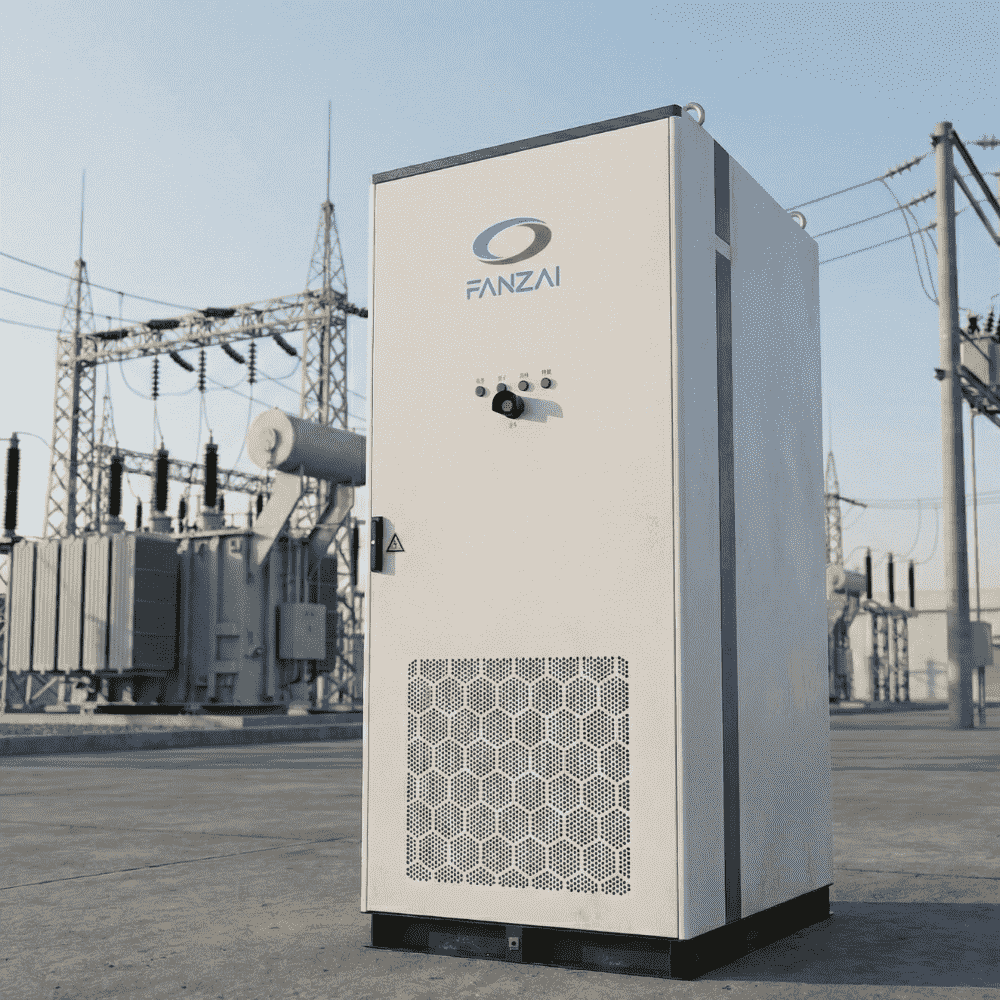

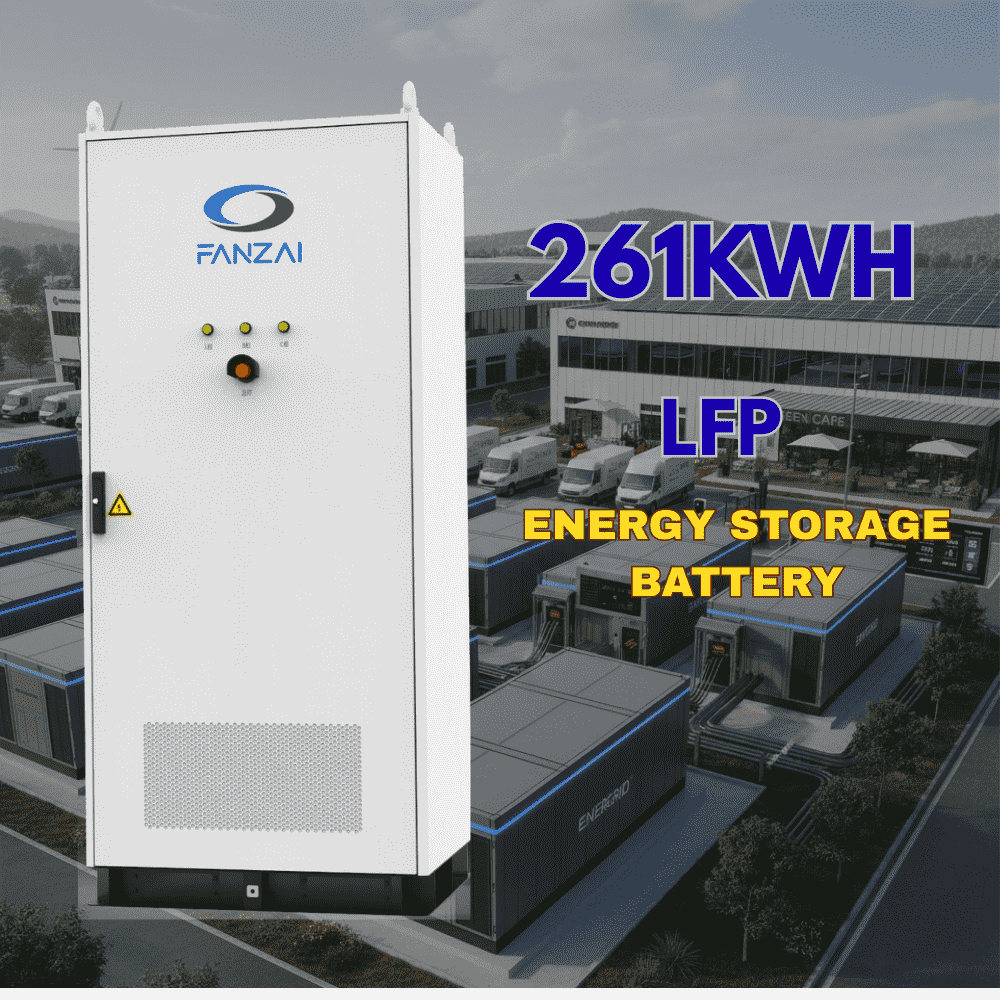

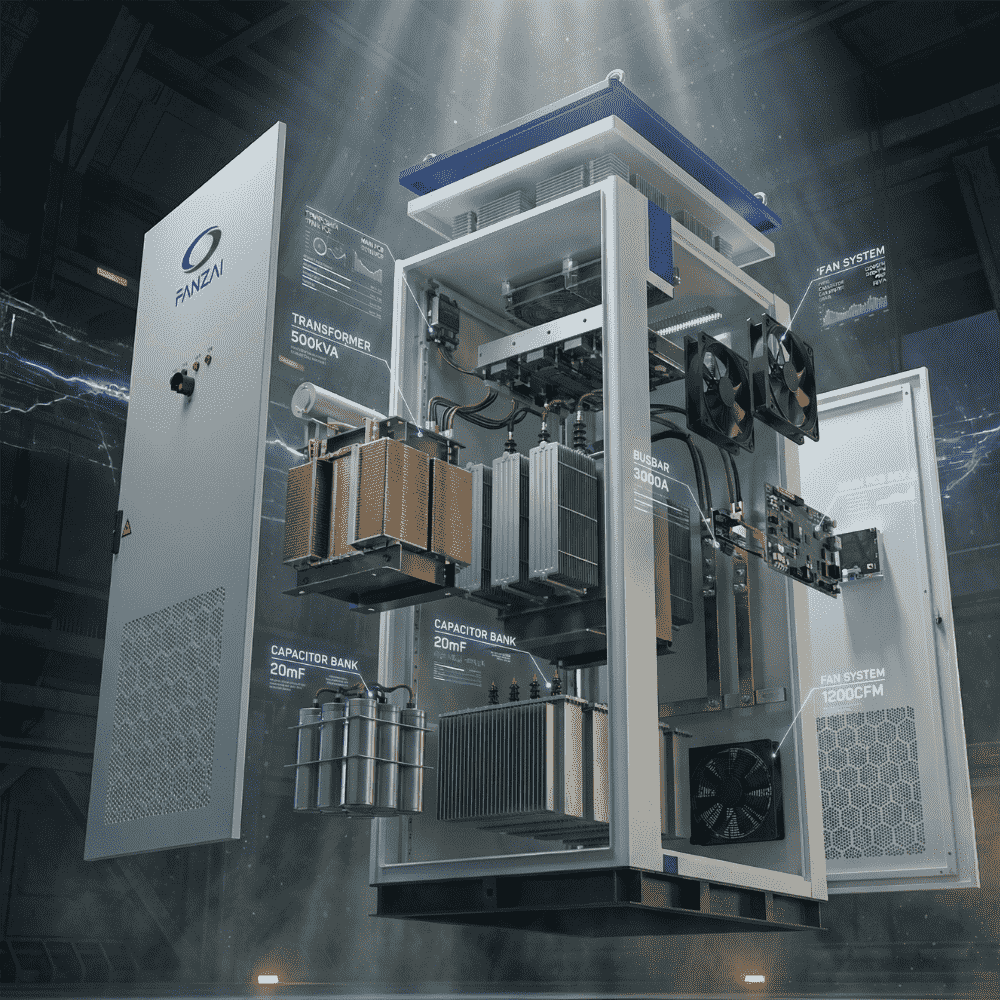

Factory Commercial & Industrial ESS
Advanced liquid cooling delivers reliable temperature regulation, enabling over 8,000 cycles while maintaining efficiency above 88%.
Ready-to-install pre-integrated outdoor cabinet supports true plug-and-play commissioning, completed on site in just 8 hours.
Comprehensive safety design with rapid fuse protection, IP54-rated outdoor cabinet (IP67 battery pack), low noise <75 dB, and operating range -30°C to 55°C.
Adjustable power rating 125 kW / 250 kW, energy storage 261–522 kWh; supports 400V grid (-15%~+10%) and 50/60 Hz frequency ±2.5 Hz.
(FZ-CnI-F1-261K)
Product Details
Businesses seeking dependable and scalable energy solutions can rely on our Commercial & Industrial system, offering 125–250 kW output and 261–522 kWh storage in pre-integrated outdoor cabinets with smart liquid cooling. It delivers exceptional battery durability of over 8,000 cycles, >88% efficiency, and on-site setup in only 8 hours.
Safety and complete integration take center stage, with quick fuse protection, IP54 cabinet (IP67 battery modules), quiet performance <75 dB, and extended temperature range -30°C to 55°C, allowing smooth grid connectivity and effective peak shaving in tough industrial environments.
This turnkey solution complies with international standards and optimizes costs with 98% PCS efficiency and balanced charge/discharge ratios, delivering reliable renewable integration and sustainable performance with virtually no interruptions.
Product Advantages
Take efficiency further: Smart liquid cooling technology optimizes system performance and markedly extends battery life.
Unwavering protection: Sophisticated battery management with instantaneous fuse safeguards ensures complete safety.
Zero setup hassle: 100% pre-built design skips field module assembly.
8-hour speedy installation: Field work done in only 8 hours, accelerate your launch.
Superior business power: High-efficiency Lithium-ion energy storage system.
Robust output capability: Rated 125 kW / 250 kW for powerful performance.
Effortless integration: Handles 400 V (-15%~+10%) for seamless grid connectivity.
Consistent frequency stability: Rated 50/60 Hz ±2.5 Hz range for reliable performance.
Technical Parameters
Feature | FZ-Cnl-F1-261K |
Total Energy | 261 kWh |
System Configuration | 1P260S |
Cell Type | 314Ah LFP |
Rated Power (0.5P) | 125 kW |
Voltage Range | 702 ~ 936 V |
AC Grid Voltage | 400 V (-15% ~ +10%) |
Grid Frequency | 50 / 60 Hz ±2.5 Hz |
Rated Current | 180 A |
PCS Max. Efficiency | 98% |
Dimensions | 1000 × 1350 × 2300 mm |
Weight | 2650 kg |
Cooling Method | Liquid Cooling |
Noise Level | ＜75 dB |
Protection | IP54 (Pack: IP67) |
Fire Suppression | Aerosol |
Communication | Ethernet / CAN / RS485 |
Communication Protocol | MODBUS-TCP |
Cycle Life | ≥8000 cycles |
Operating Temperature | -30 ℃ ~ +55 ℃ |
Humidity | ＜95% RH |
Max. Altitude | ≤2000 m |
Certifications | UN38.3, IEC62477, IEC62619, IEC63056, GB/T 34120, GB/T 36276 |

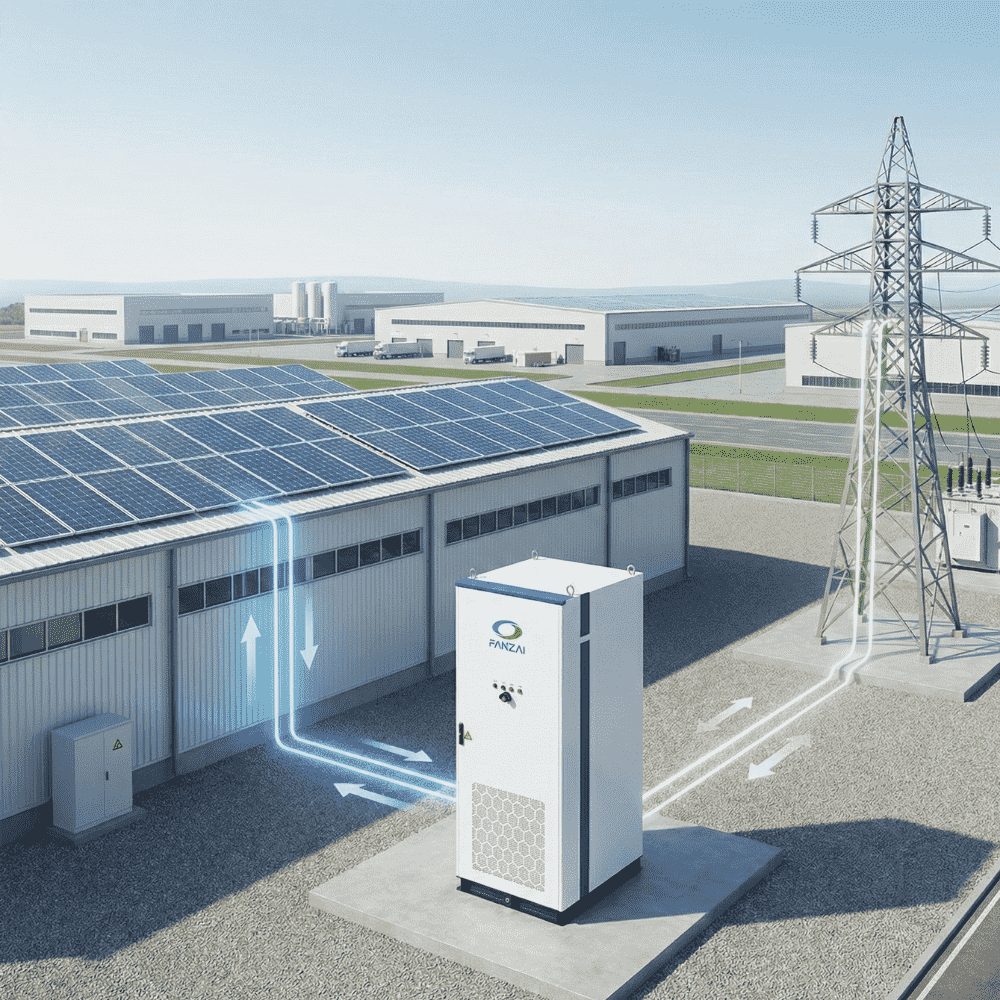

Application scenarios
