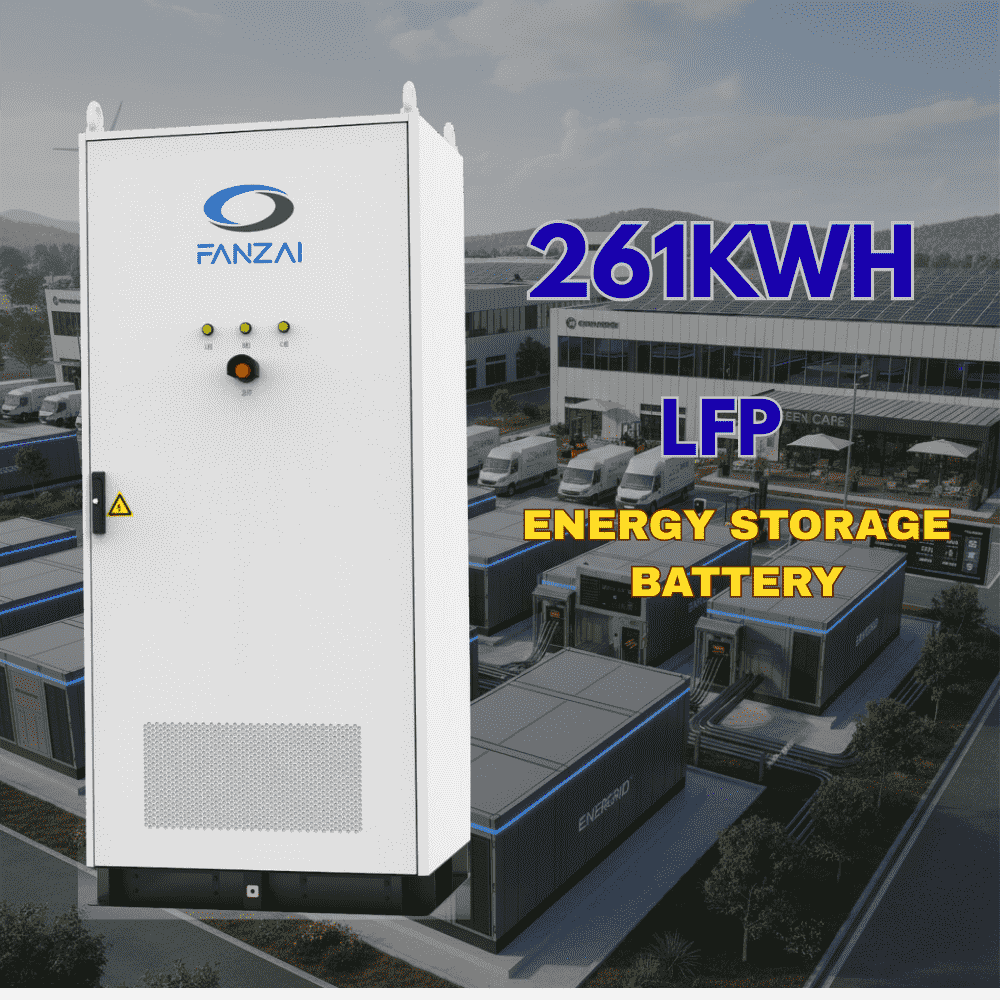

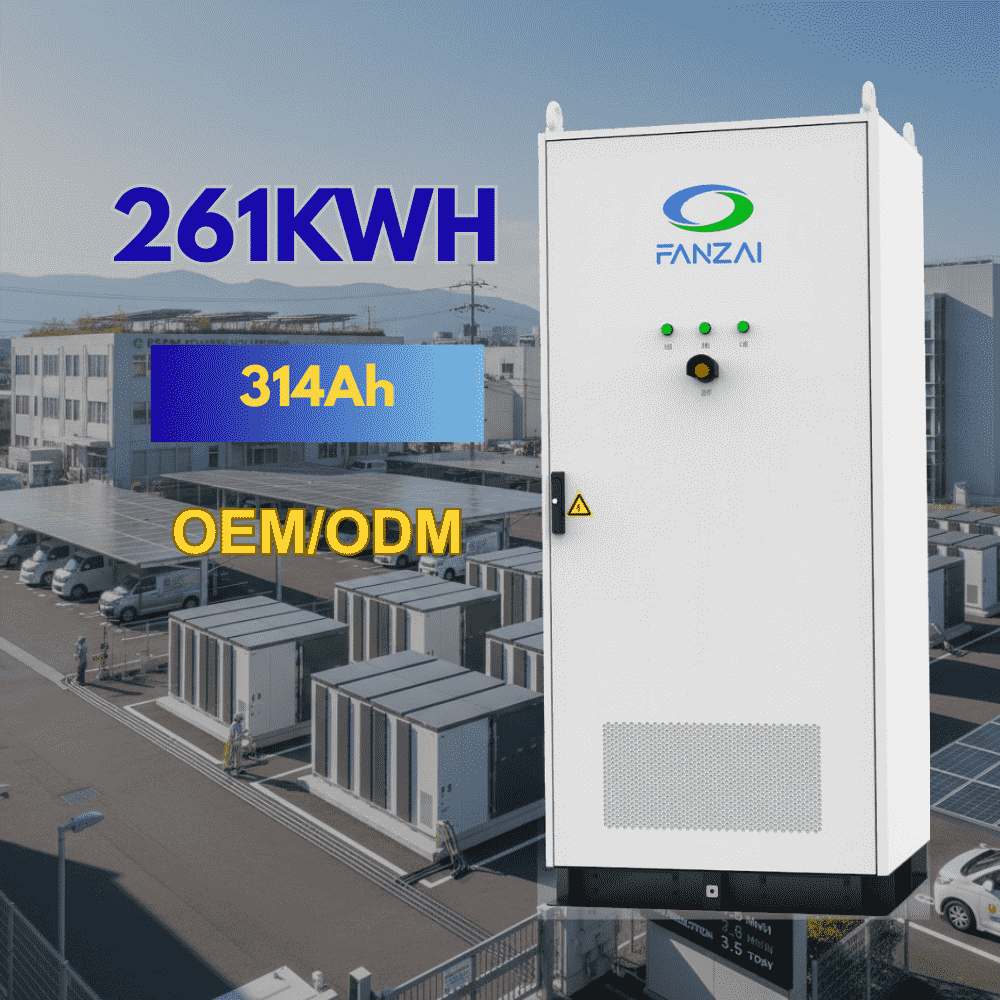

Backup Power For Commercial Facilities
Cutting-edge liquid cooling technology guarantees consistent thermal performance and battery durability exceeding 8,000 cycles with >88% efficiency.
Fully pre-assembled integrated cabinet system delivers fast plug-and-play deployment, with field setup taking only 8 hours.
Enhanced multi-layer safety system featuring fast-acting fuses, IP54 cabinet (IP67 battery module), noise level under 75 dB, and wide temp range -30°C to 55°C.
Flexible power options: 125 kW or 250 kW, storage capacity from 261 to 522 kWh, compatible with 400 V grid voltage -15% to +10% and 50/60 Hz ±2.5 Hz.
(FZ-CnI-F1-261K)
Product Details
For organizations prioritizing performance and speed in energy storage, our C&I system combines 125–250 kW power with 261–522 kWh capacity in plug-and-play outdoor cabinets equipped with advanced liquid cooling technology. This ensures battery life surpassing 8,000 cycles, efficiency above 88%, and deployment completed in just 8 hours.
Designed for maximum safety and integration, it includes fast-acting fuse protection, IP54-rated enclosure with IP67 packs, noise levels under 75 dB, and a broad temperature range of -30°C to 55°C, facilitating reliable grid synchronization and peak demand management.
Internationally certified, this plug-and-play turnkey system lowers costs through 98% PCS efficiency and harmonized energy cycling, enabling dependable renewable energy use and minimal downtime across commercial, industrial, and office applications.
Product Advantages
Efficiency redefined: Innovative liquid cooling delivers superior performance and dramatically longer battery lifespan.
Absolute safety priority: Advanced battery protection system incorporating rapid fuse technology delivers ultimate security.
Plug-and-play deployment: Fully pre-assembled – eliminate on-site module work.
Rapid on-site setup: Installation completed in just 8 hours for quicker startup.
Power optimized for business: Advanced rechargeable Lithium-ion BESS.
High-capacity delivery: 125 kW and 250 kW output to fuel your operations.
Grid-tolerant system: 400 V range with -15% to +10% variation for smooth integration.
Steady grid compatibility: 50/60 Hz with ±2.5 Hz variation for uninterrupted service.
Technical Parameters
Feature | FZ-Cnl-F1-261K |
Total Energy | 261 kWh |
System Configuration | 1P260S |
Cell Type | 314Ah LFP |
Rated Power (0.5P) | 125 kW |
Voltage Range | 702 ~ 936 V |
AC Grid Voltage | 400 V (-15% ~ +10%) |
Grid Frequency | 50 / 60 Hz ±2.5 Hz |
Rated Current | 180 A |
PCS Max. Efficiency | 98% |
Dimensions | 1000 × 1350 × 2300 mm |
Weight | 2650 kg |
Cooling Method | Liquid Cooling |
Noise Level | ＜75 dB |
Protection | IP54 (Pack: IP67) |
Fire Suppression | Aerosol |
Communication | Ethernet / CAN / RS485 |
Communication Protocol | MODBUS-TCP |
Cycle Life | ≥8000 cycles |
Operating Temperature | -30 ℃ ~ +55 ℃ |
Humidity | ＜95% RH |
Max. Altitude | ≤2000 m |
Certifications | UN38.3, IEC62477, IEC62619, IEC63056, GB/T 34120, GB/T 36276 |

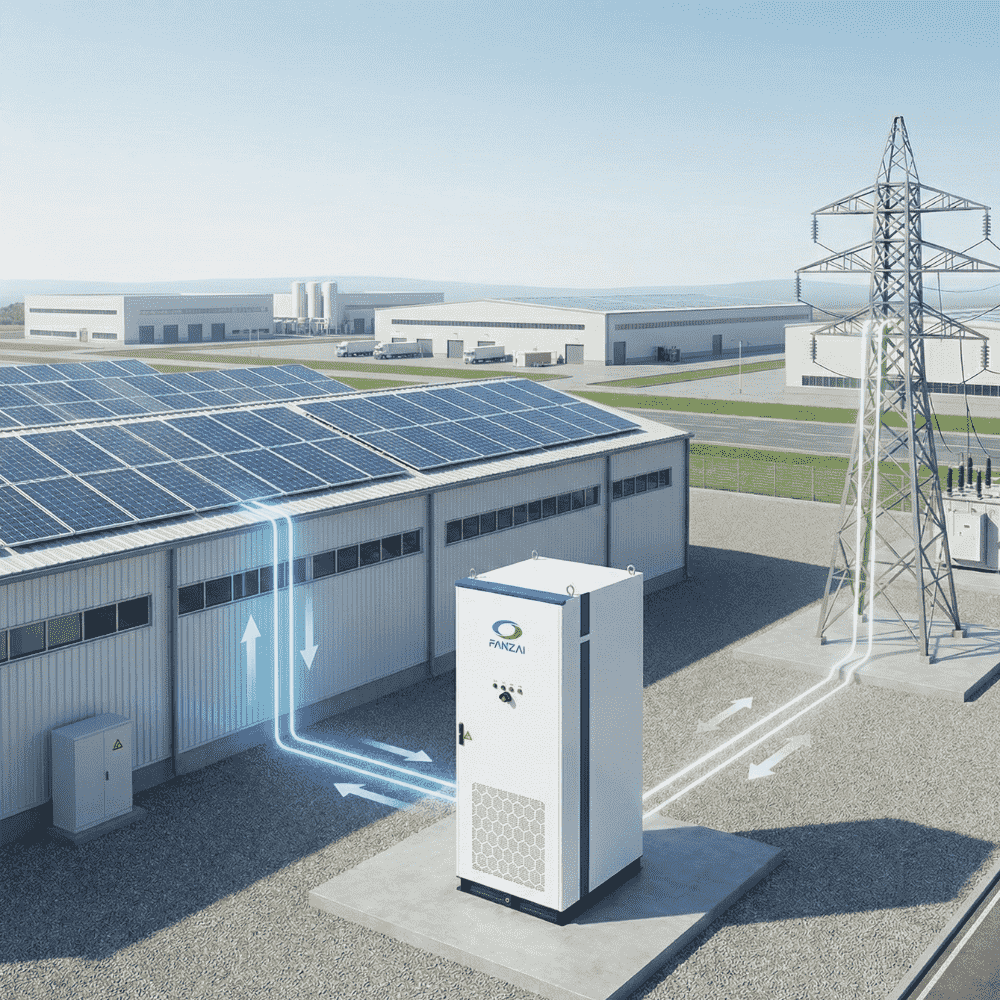

Application scenarios

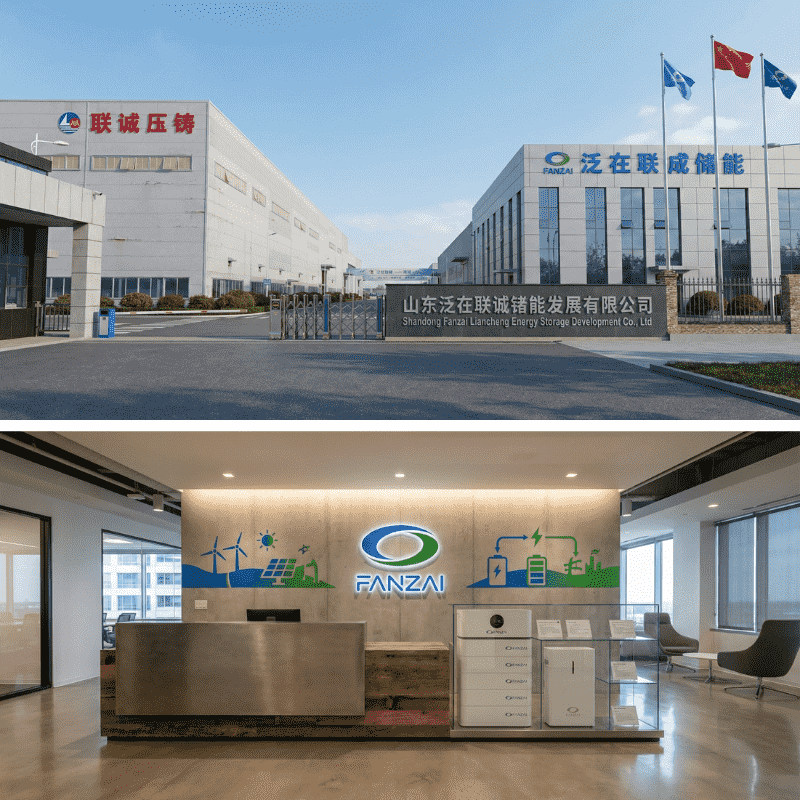

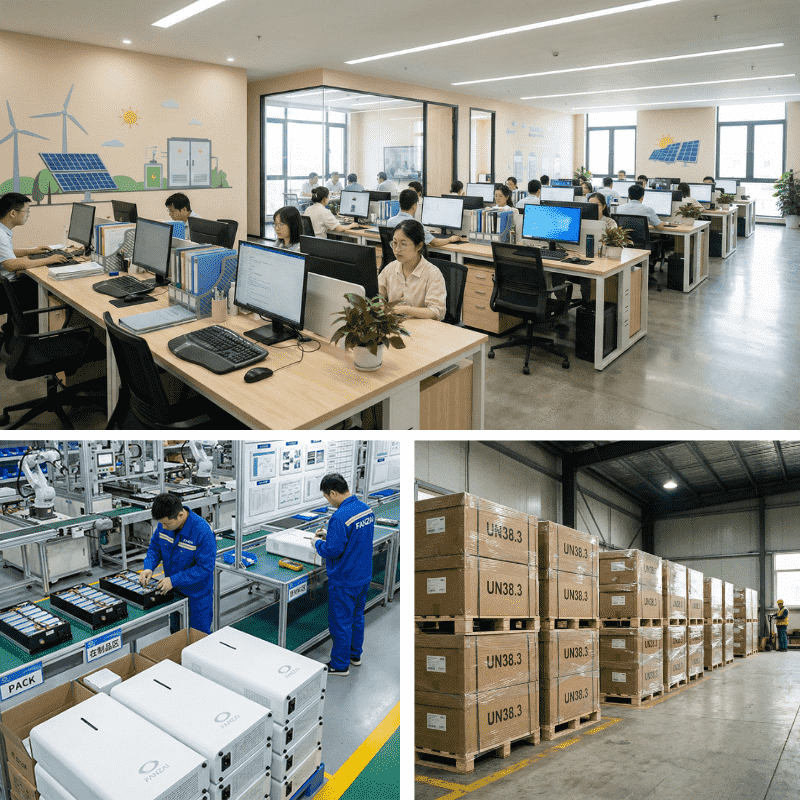

About Factory
