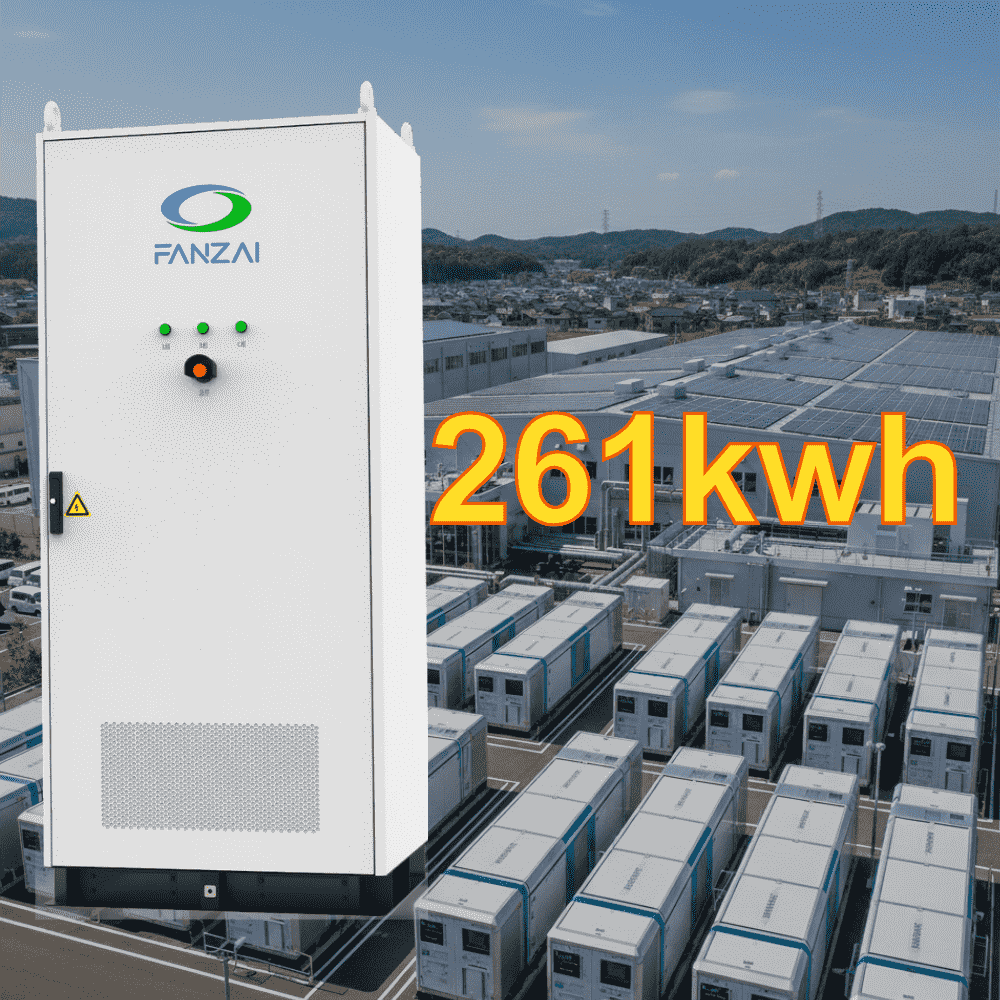

Grid Independence Commercial Storage
High-efficiency liquid cooling maintains stable temperatures throughout, supporting battery longevity beyond 8,000 cycles with >88% efficiency.
Factory-built fully integrated cabinet allows true plug-and-play commissioning, with installation completed in just 8 hours.
Advanced safety features with fast fuse protection, IP54-rated cabinet (IP67 battery), low operating noise <75 dB, and broad temp range from -30°C to 55°C.
Configurable power & capacity: 125 kW or 250 kW output, 261–522 kWh energy, supports 400V grid tolerance -15%~+10% and 50/60 Hz ±2.5 Hz.
(FZ-CnI-F1-261K)
Product Details
For commercial and industrial users demanding efficient energy storage, our solution offers 125–250 kW output and 261–522 kWh capacity in ready-to-deploy outdoor cabinets equipped with intelligent liquid cooling technology. It ensures battery life of 8,000+ cycles, efficiency exceeding 88%, and on-site setup in only 8 hours.
Safety and seamless integration are top priorities, featuring fast-acting fuse safeguards, IP54-rated cabinet (IP67 battery modules), noise under 75 dB, and reliable performance across -30°C to 55°C, allowing effortless grid connectivity and peak load management in demanding industrial applications.
Adhering to worldwide standards, this ready-to-deploy system achieves cost efficiency through 98% power conversion efficiency and even charge/discharge ratios, providing robust renewable integration and minimal downtime for industrial and commercial facilities.
Product Advantages
Unleash peak efficiency: Smart liquid cooling technology significantly improves performance while extending battery life dramatically.
Unrivaled safety features: Advanced battery protection with rapid-response fuse technology guarantees total security.
Hassle-free deployment: Fully pre-assembled system skips on-site module setup.
8-hour express setup: On-site assembly in only 8 hours, faster time to operation.
Excellence powered: Advanced Lithium-ion BESS designed for superior business performance.
Immense capability: Provides 125 kW and 250 kW for robust operational support.
Seamless grid support: 400 V with -15%~+10% tolerance for effortless integration.
Uninterrupted operation: Supports 50/60 Hz with ±2.5 Hz deviation for steady performance.
Technical Parameters
Feature | FZ-Cnl-F1-261K |
Total Energy | 261 kWh |
System Configuration | 1P260S |
Cell Type | 314Ah LFP |
Rated Power (0.5P) | 125 kW |
Voltage Range | 702 ~ 936 V |
AC Grid Voltage | 400 V (-15% ~ +10%) |
Grid Frequency | 50 / 60 Hz ±2.5 Hz |
Rated Current | 180 A |
PCS Max. Efficiency | 98% |
Dimensions | 1000 × 1350 × 2300 mm |
Weight | 2650 kg |
Cooling Method | Liquid Cooling |
Noise Level | ＜75 dB |
Protection | IP54 (Pack: IP67) |
Fire Suppression | Aerosol |
Communication | Ethernet / CAN / RS485 |
Communication Protocol | MODBUS-TCP |
Cycle Life | ≥8000 cycles |
Operating Temperature | -30 ℃ ~ +55 ℃ |
Humidity | ＜95% RH |
Max. Altitude | ≤2000 m |
Certifications | UN38.3, IEC62477, IEC62619, IEC63056, GB/T 34120, GB/T 36276 |
