Utility-Scale Battery Energy Storage System
Offers exceptional power capacity at 1672 kW and 2500 kW in high-voltage mode, enabling robust peak shaving and grid balancing.
Standard 20-foot containerized solution comes fully pre-assembled, supporting quick and easy deployment for large utility projects.
Built to withstand tough conditions featuring IP54 protection, temperature operation from -20°C to +50°C, and up to 95% humidity resistance.
Advanced liquid cooling with ethylene-glycol maintains consistent temperatures even under intense loads, extending lifespan and boosting system safety.

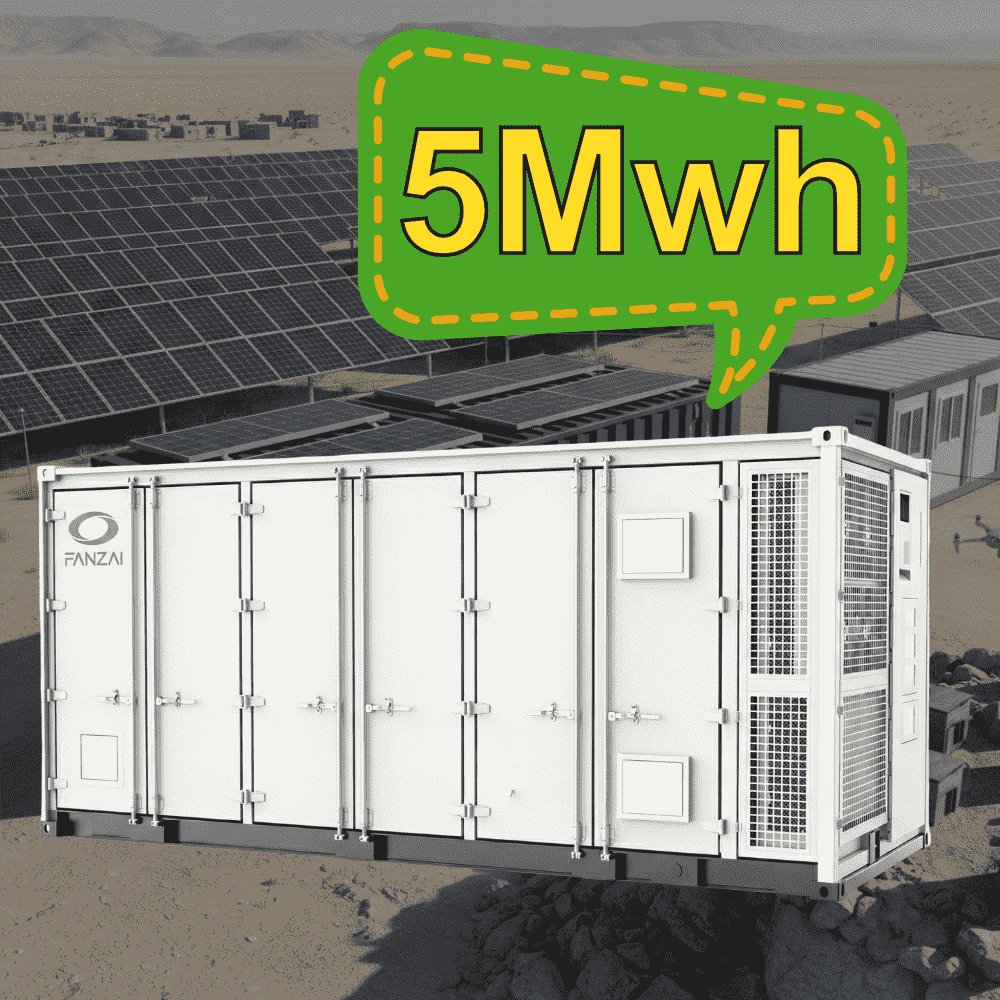

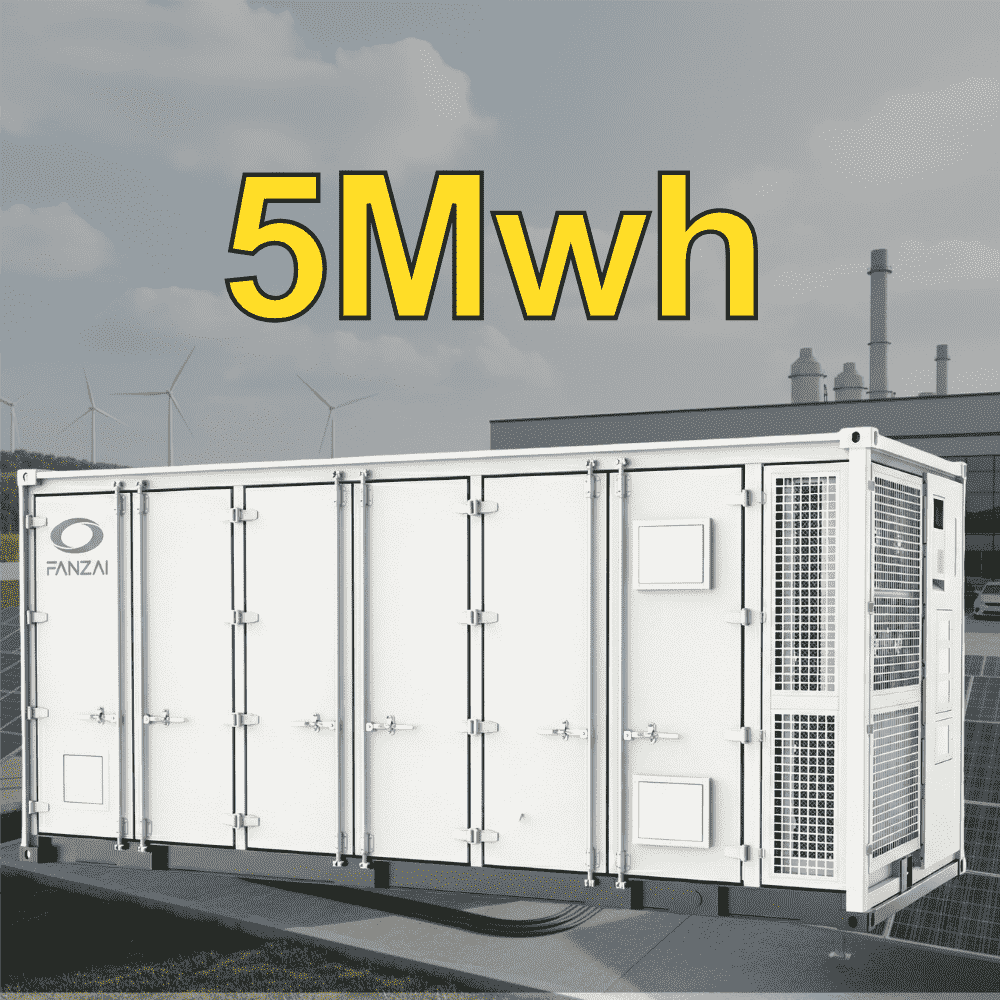

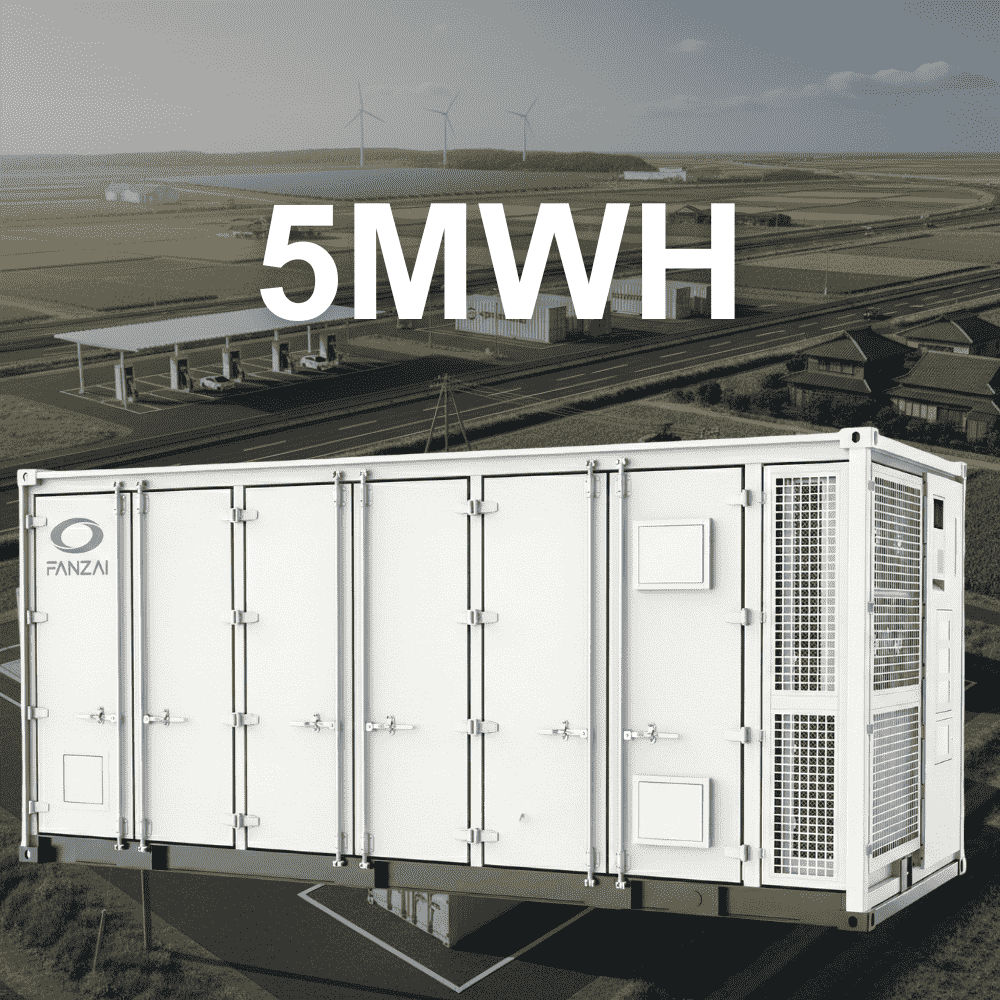

Utility Scale Energy Storage System (FZ-LS-F1-5M)
Product Details
Pioneering modern grid evolution, our utility-scale battery storage deploys containerized units boasting multi-MWh capacities, advanced heat dissipation technology, and multiple layers of safety protection to securely accommodate enormous energy throughput. Completely integrated and plug-and-play ready, they enable high-voltage operations and extended cycle longevity for consistent grid reliability.
This advanced solution enables power utilities to balance the variability of renewables, handle fluctuating demand with ease, and maintain rock-solid grid performance in even the most remote or demanding locations, accelerating the shift toward sustainable and robust global power systems.
Boasting intelligent connectivity and minimal ecological impact, it forms a core investment in the transformation toward large-scale sustainable energy.
Product Advantages
Strong discharge capacity: Offers 1672 kW or 2500 kW rated power at 0.5C rate.
Broad operating voltage: Covers 1164.8 V to 1497.6 V, perfect for versatile utility needs.
ISO container-sized: Dimensions of 6058 × 2438 × 2896 mm.

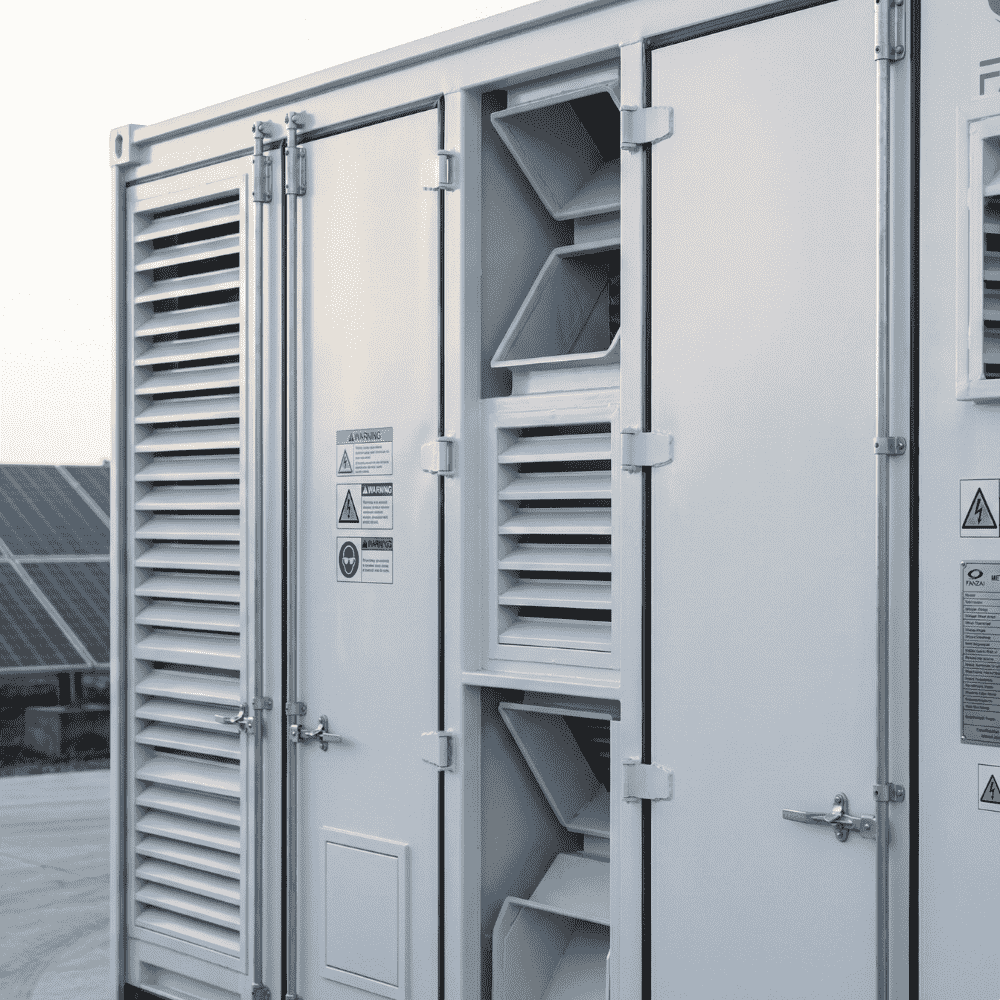

IP54 weather-resistant enclosure: Built for long-term outdoor performance.
Broad operating temperature range: Performs effortlessly from -20°C to +50°C.
Full humidity adaptability: Functions reliably from 0–95% RH without condensation.
High-efficiency liquid cooling: Employs 50% ethylene glycol mixture for excellent thermal performance.
Technical Parameters
Feature | FZ-LS-F1-5M |
Total Energy | 5015.96 kWh 6 |
System Configuration | 1P416S*12 7 |
Cell Type | 314Ah LFP |
Rated Power (0.5P) | 2500 kW |
Dimensions | 6058 x 2438 x 2896 mm (20ft) |
Cooling Method | Liquid Cooling |
Protection | IP54 / C4 Anti-corrosion 12 |
Certifications | CE, UN38.3, IEC62619, GB/T36276 |

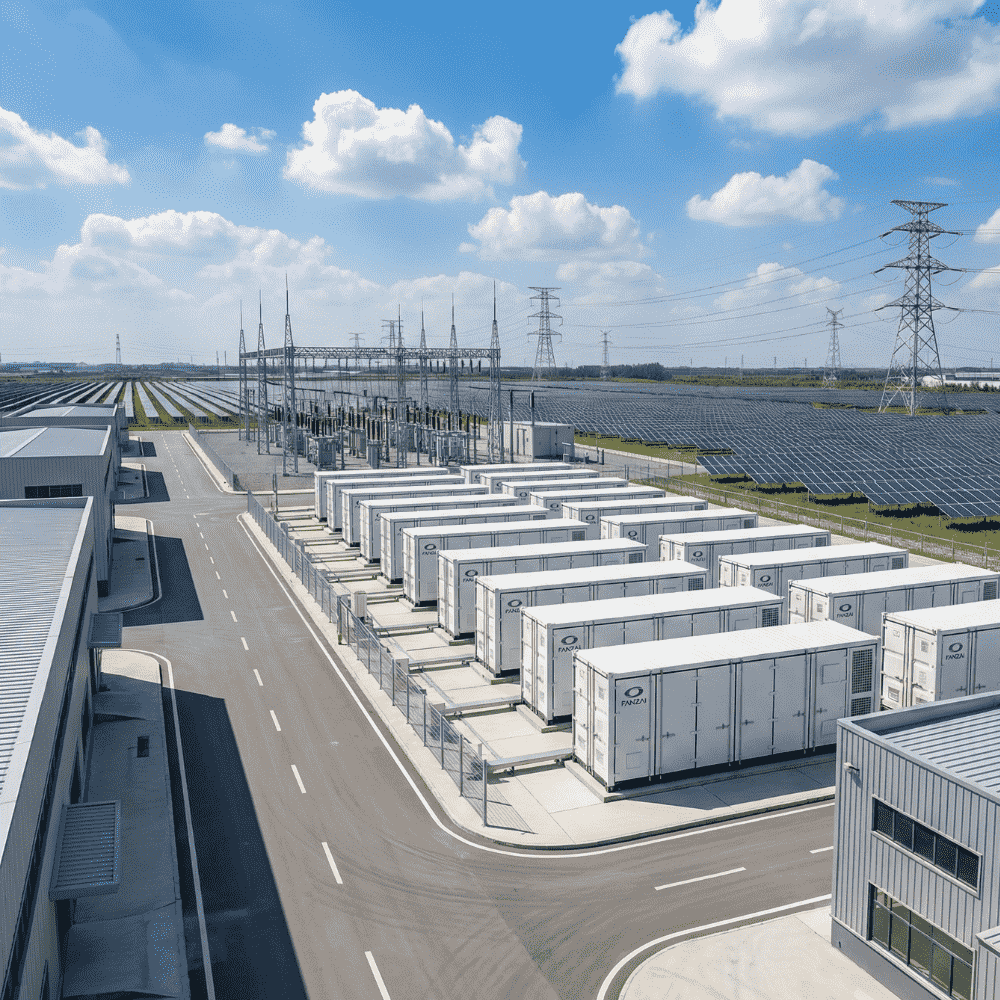

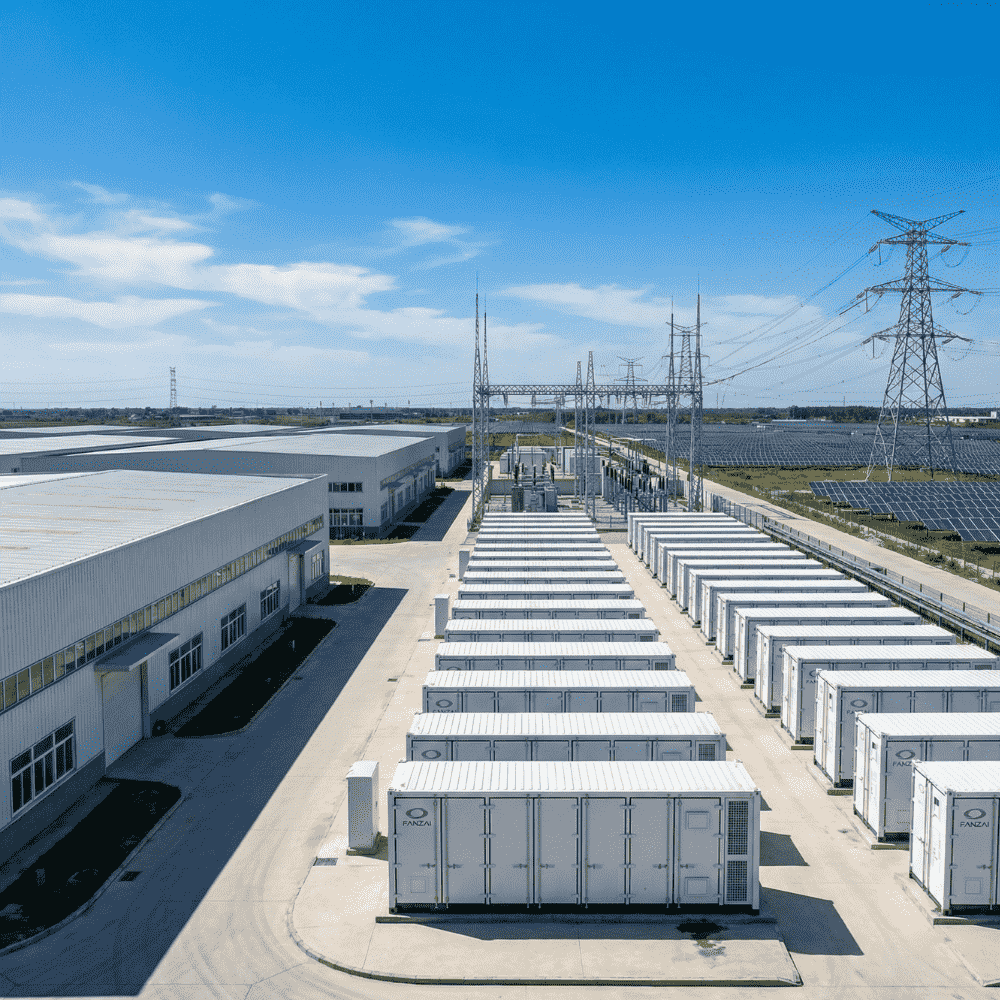

Application scenarios

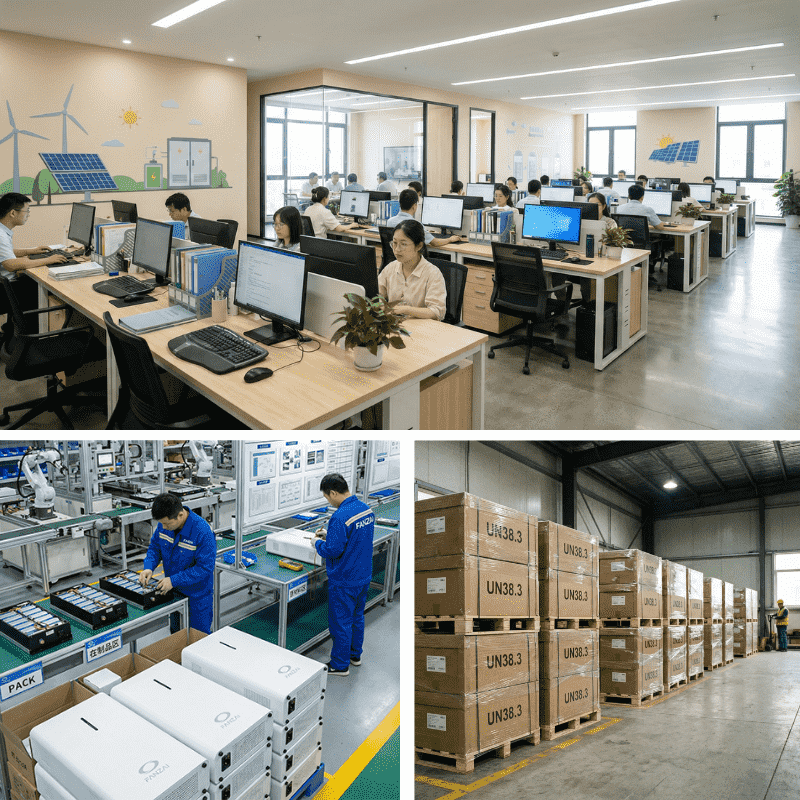

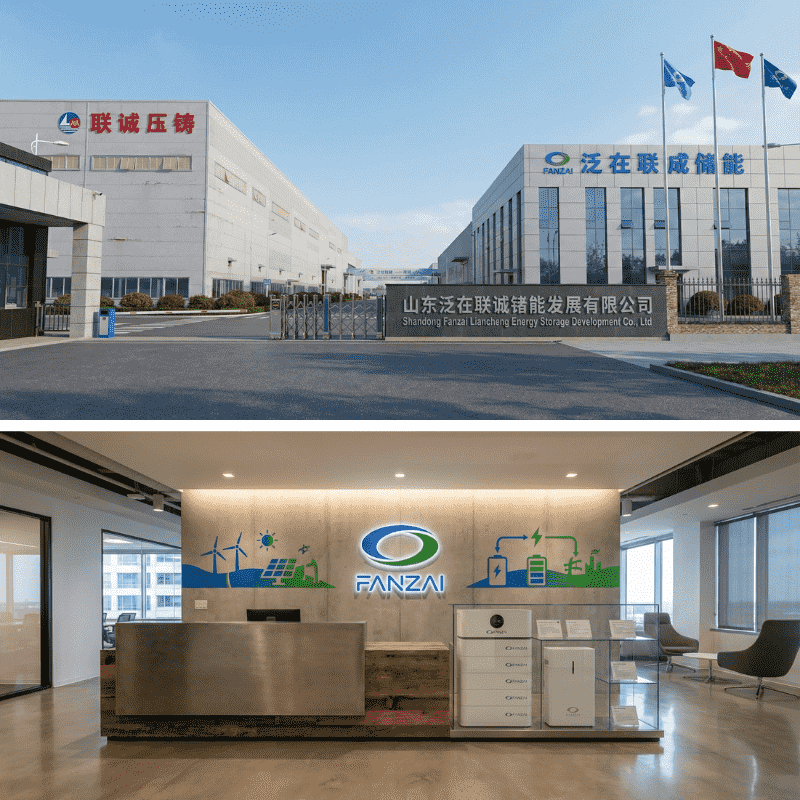

About Factory
