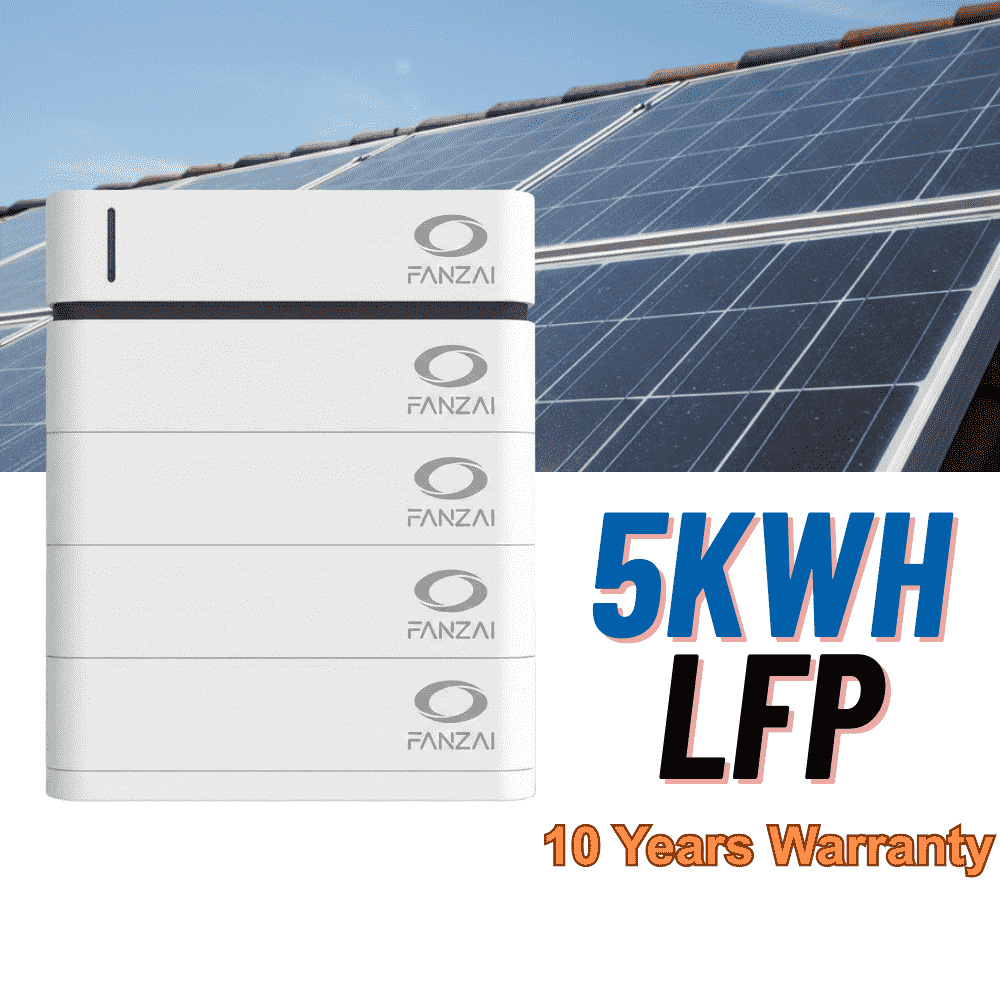

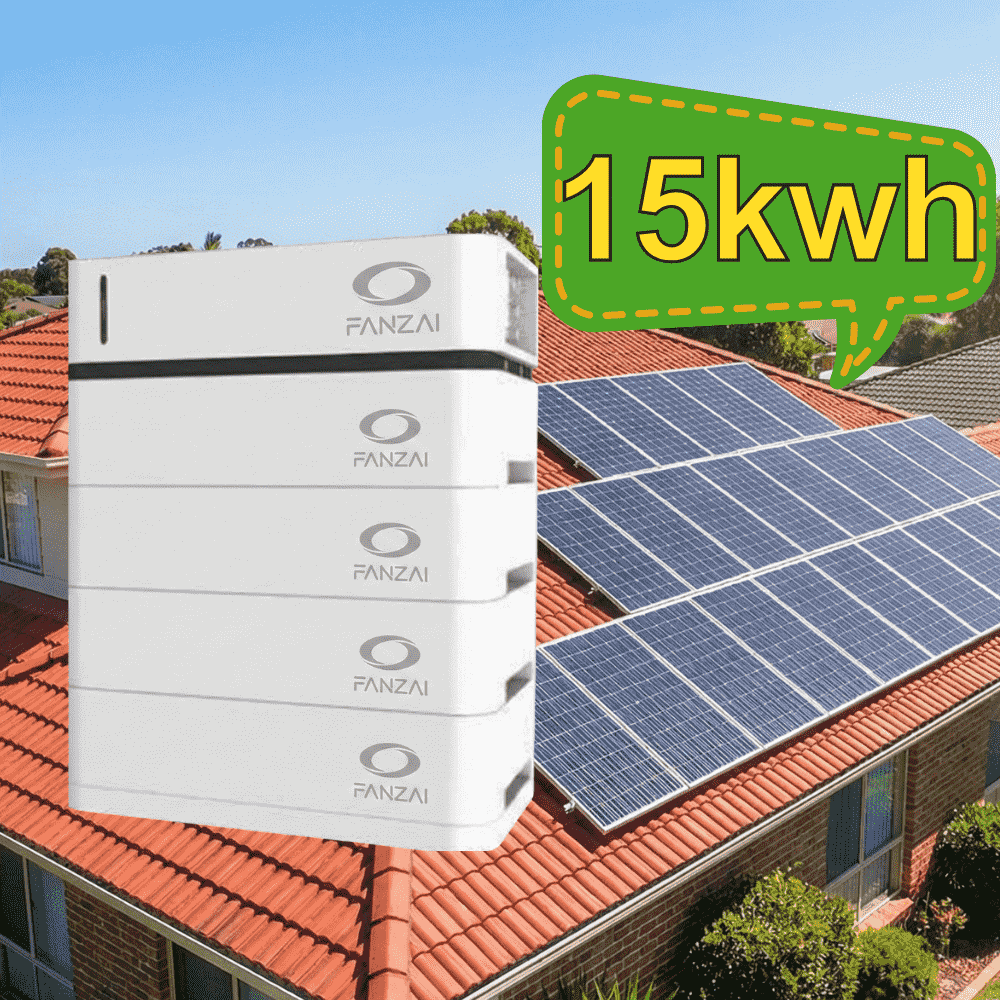

Stackable Solar Home Storage
Guarantees exceptional endurance: 6,000 cycles at 90% DoD and a service life of over 15 years for lasting reliability.
Features secure LiFePO₄ chemistry combined with an advanced BMS for comprehensive safety and stable performance.
Offers versatile installation choices (wall or floor) and parallel scalability reaching 30 kWh to accommodate growing home demands.
Provides expandable usable energy storage of 4.86–29.16 kWh, optimized for easy solar compatibility and dependable backup power.
Residential Energy Storage System (FZ-RES-W-5~30K)
Product Details

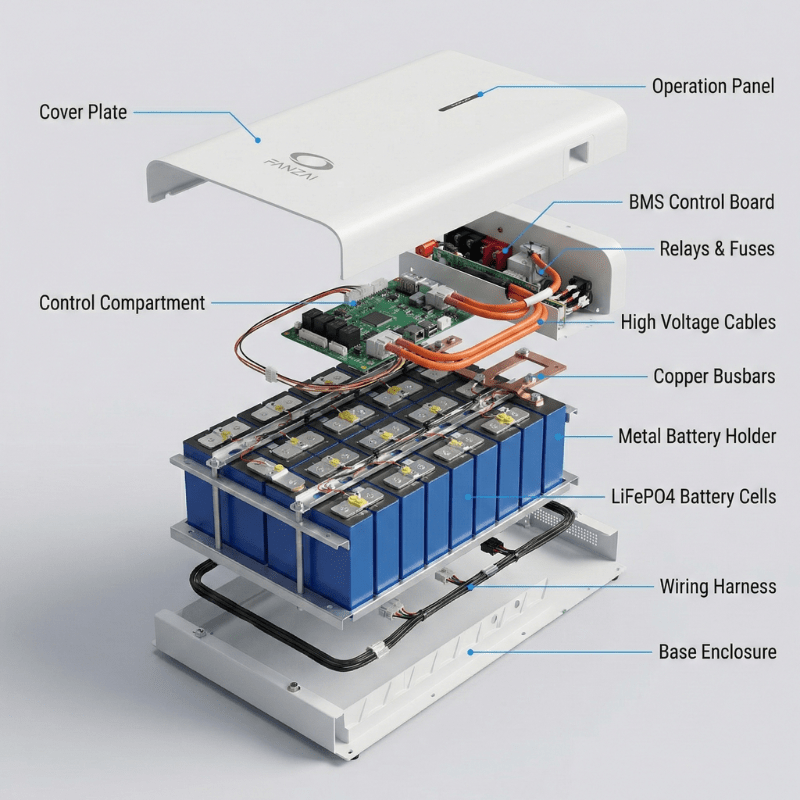

Providing dependable and modular residential storage, our system scales from 5.12 to 30.72 kWh with advanced LiFePO₄ battery cells for outstanding safety and performance. Equipped with an intelligent BMS featuring active protection, passive cooling, and flexible mounting (wall or floor), it works seamlessly with solar systems for backup power, peak demand management, and energy independence in indoor environments.
Provides up to 6,000 full cycles at 90% DoD and suggests 95% depth of discharge for best usability, featuring a 15+ year lifespan and the ability to connect up to six units in parallel within a robust steel cabinet. Equipped with IP20 ingress protection and wide humidity compatibility, it delivers silent, highly reliable operation and excellent cost-effectiveness for today's green homes.
Product Advantage
Achieve unparalleled battery life: up to 6,000 cycles at 90% DoD for consistent, long-term home energy.
Built for longevity: Designed to deliver more than 15 years of exceptional reliability.
Rock-solid protection: Cutting-edge LiFePO₄ battery cells paired with a smart BMS for ironclad safety.
Space-optimized design: Easily install on walls or floors to fit any area seamlessly.
Grow without limits: Scale your system up to 30 kWh for complete energy freedom.
Welcome the future: Innovative rechargeable Lithium-ion storage system, reshaping how homes use power.
Versatile energy storage: Capacities ranging from 5.12 kWh to 30.72 kWh for every need.
Unlock maximum efficiency: Enjoy 4.86–29.16 kWh of efficient, on-demand power.
Technical Parameters
Feature | FZ-RES-W1-5K |
Battery Module | FZ-RES-W1-5K |
Total Energy | 5.12 kWh |
Usable Energy | 4.86 kWh |
Configuration | 16S |
Rated Capacity | 100 Ah |
Nominal Voltage | 51.2 V |
Voltage Range | 44.8 ~ 57.6 V |
Charge Voltage | 57.6 V |
Nominal Charge Current | 50 A |
Nominal Discharge Current | 80 A |
Peak Short-circuit Current | 474.17 A |
DOD | 95% |
Cycle Life | ≥8000 cycles |
Communication Interface | CAN / RS485 / WiFi |
Max Parallel Quantity | 6 |
Cooling Method | Natural Cooling |
Installation Method | Wall-mounted / Floor-standing |
Operating Temperature (Charge) | 0 ~ 52 ℃ |
Operating Temperature (Discharge) | -15 ~ 52 ℃ |
Dimensions (H×W×D) | 640 × 420 × 160 mm |
Net Weight | 45 kg |
IP Rating | IP20 |
Protection Class | Class I |
Application | Indoor |
Certifications | UN38.3 / CE-EMC / CE-RED / CB / IEC62619 |
Application scenarios

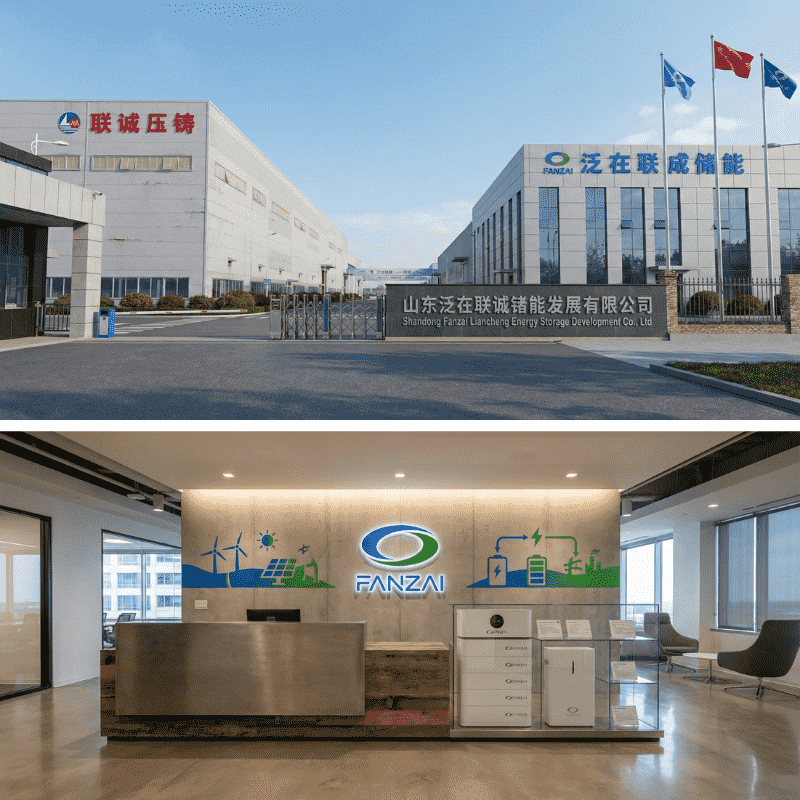

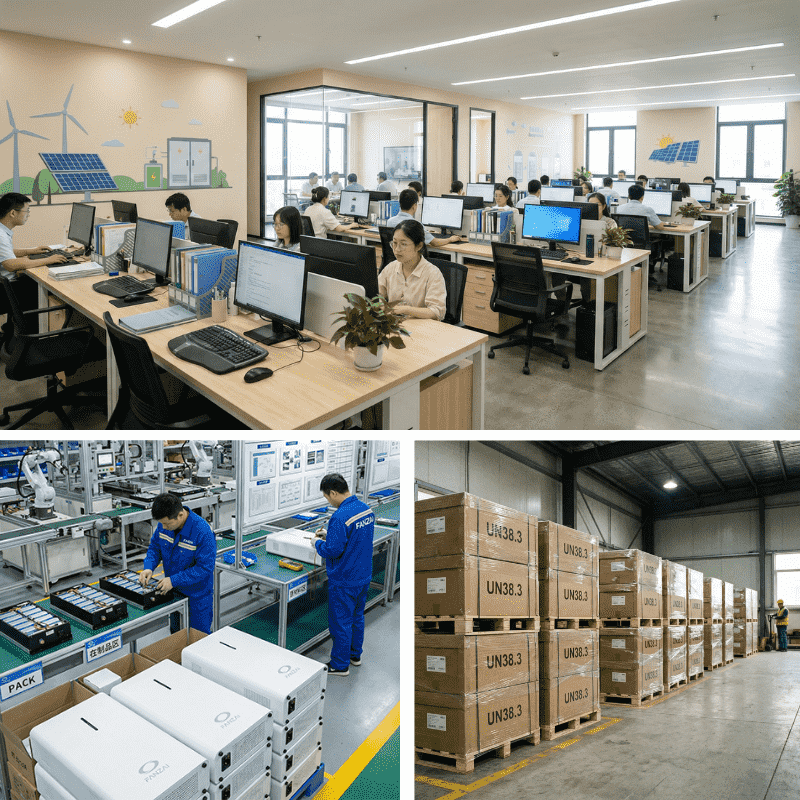

About Factory
