Smart C&I Energy Storage System
Advanced liquid cooling system guarantees consistent temperature control and exceptional battery life exceeding 8,000 cycles at >88% efficiency.
Pre-integrated ready-to-deploy outdoor enclosure delivers rapid plug-and-play commissioning, with setup in just 8 hours.
Comprehensive multi-level safety: quick fuse, IP54 enclosure (IP67-rated battery), operating noise below 75 dB, and wide operating temperature -30°C to 55°C.
Adjustable power levels 125 kW or 250 kW, energy storage 261 to 522 kWh, supports 400V (-15%~+10%) and 50/60 Hz grid with ±2.5 Hz tolerance.
(FZ-CnI-F1-261K)
Product Details
For commercial and industrial users in search of scalable energy performance, our solution combines 125–250 kW output with 261–522 kWh storage in pre-built outdoor cabinets equipped with intelligent liquid cooling technology. It delivers exceptional battery durability of over 8,000 cycles, >88% system efficiency, and deployment in only 8 hours.
Safety and integration are of primary importance, with rapid fuse protection, IP54 cabinet rating (IP67 battery modules), noise under 75 dB, and operating temperatures from -30°C to 55°C, enabling reliable grid synchronization and peak load optimization in rigorous industrial environments.
Adhering to international certifications, this complete turnkey system achieves cost savings with 98% PCS efficiency and optimized charge/discharge balance, delivering high-reliability renewable integration for commercial, office, and factory environments.
Product Advantages
Efficiency transformed: Innovative intelligent liquid cooling significantly boosts performance and extends battery life dramatically.
Absolute security design: Sophisticated battery management with rapid-response fuses for complete safety.
Hassle-free readiness: Fully pre-assembled design eliminates on-site module work.
Swift 8-hour commissioning: Site setup done in just 8 hours, get running faster.
Revolutionary business power: Cutting-edge Lithium-ion Battery Energy Storage Solution.
High-performance output: Rated at 125 kW / 250 kW to fuel your business.
Adaptive connectivity: Handles 400 V (-15%~+10%) for reliable grid connection.
Uninterrupted stability: 50/60 Hz ±2.5 Hz range for reliable and seamless operation.
Technical Parameters
Feature | FZ-Cnl-F1-261K |
Total Energy | 261 kWh |
System Configuration | 1P260S |
Cell Type | 314Ah LFP |
Rated Power (0.5P) | 125 kW |
Voltage Range | 702 ~ 936 V |
AC Grid Voltage | 400 V (-15% ~ +10%) |
Grid Frequency | 50 / 60 Hz ±2.5 Hz |
Rated Current | 180 A |
PCS Max. Efficiency | 98% |

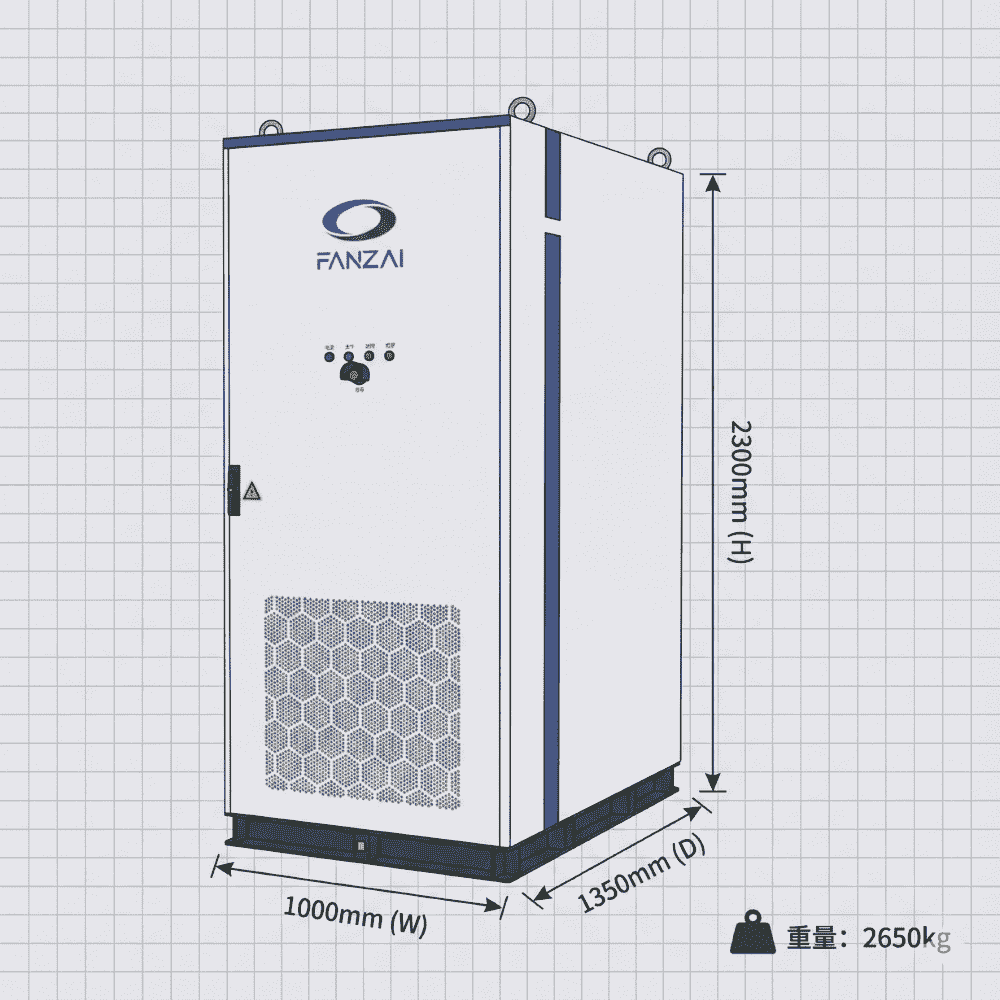

Dimensions | 1000 × 1350 × 2300 mm |
Weight | 2650 kg |
Cooling Method | Liquid Cooling |
Noise Level | ＜75 dB |
Protection | IP54 (Pack: IP67) |
Fire Suppression | Aerosol |
Communication | Ethernet / CAN / RS485 |
Communication Protocol | MODBUS-TCP |
Cycle Life | ≥8000 cycles |
Operating Temperature | -30 ℃ ~ +55 ℃ |
Humidity | ＜95% RH |
Max. Altitude | ≤2000 m |
Certifications | UN38.3, IEC62477, IEC62619, IEC63056, GB/T 34120, GB/T 36276 |
