Battery Storage for Household
Scalable storage solutions offering 5.12–30.72 kWh cater to a variety of home needs and support effortless expansion later.
51.2 V nominal voltage combined with a broad 44.8–57.6 V operating band guarantees steady and reliable energy output.
Rapid and robust backup power provided by 100 Ah cells with discharge capability up to 160A.
Built-in protection technology ensures quick and safe charging with sustainable savings on electricity bills.

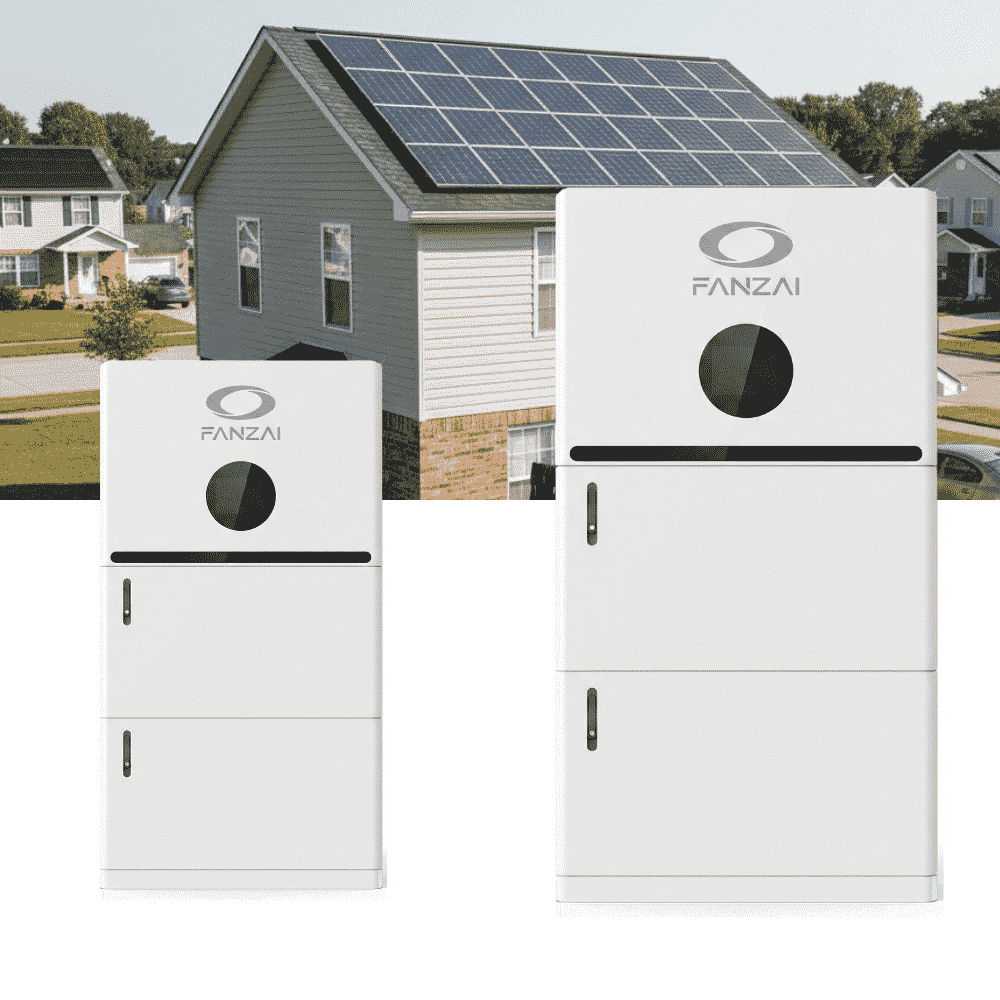

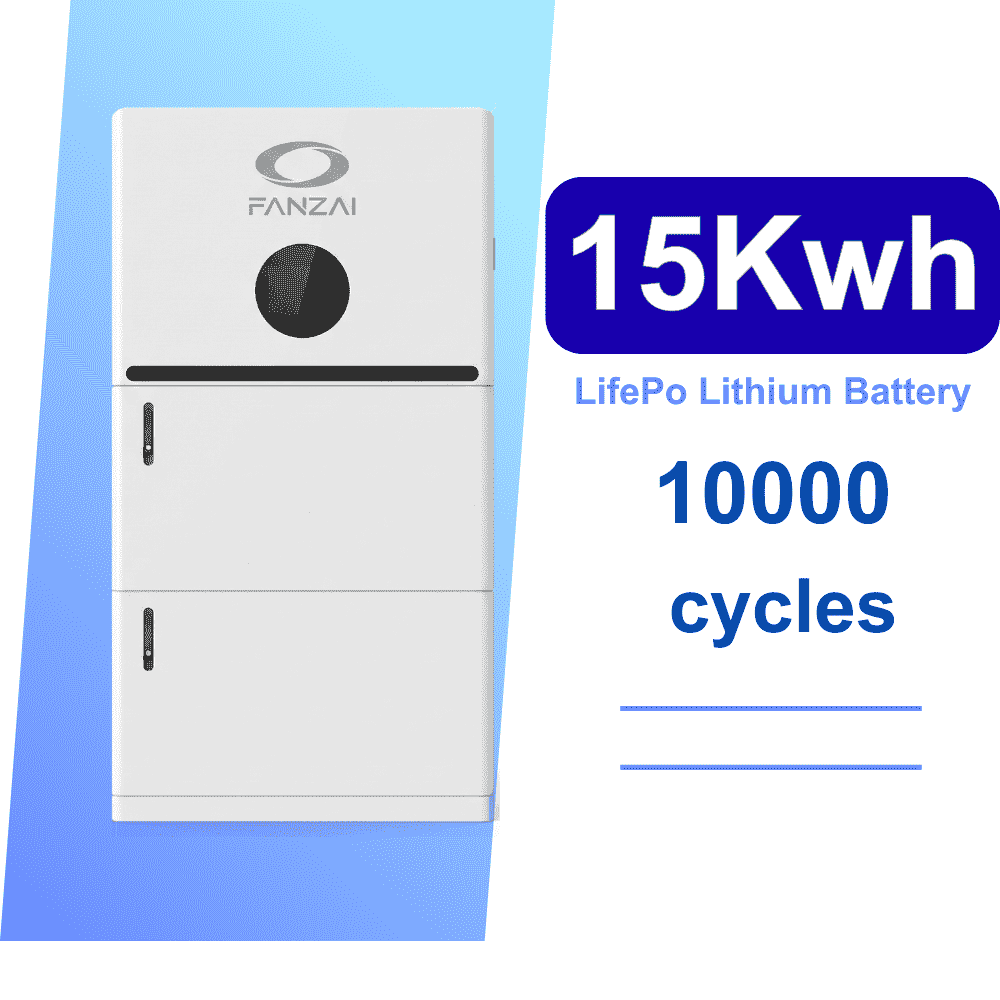

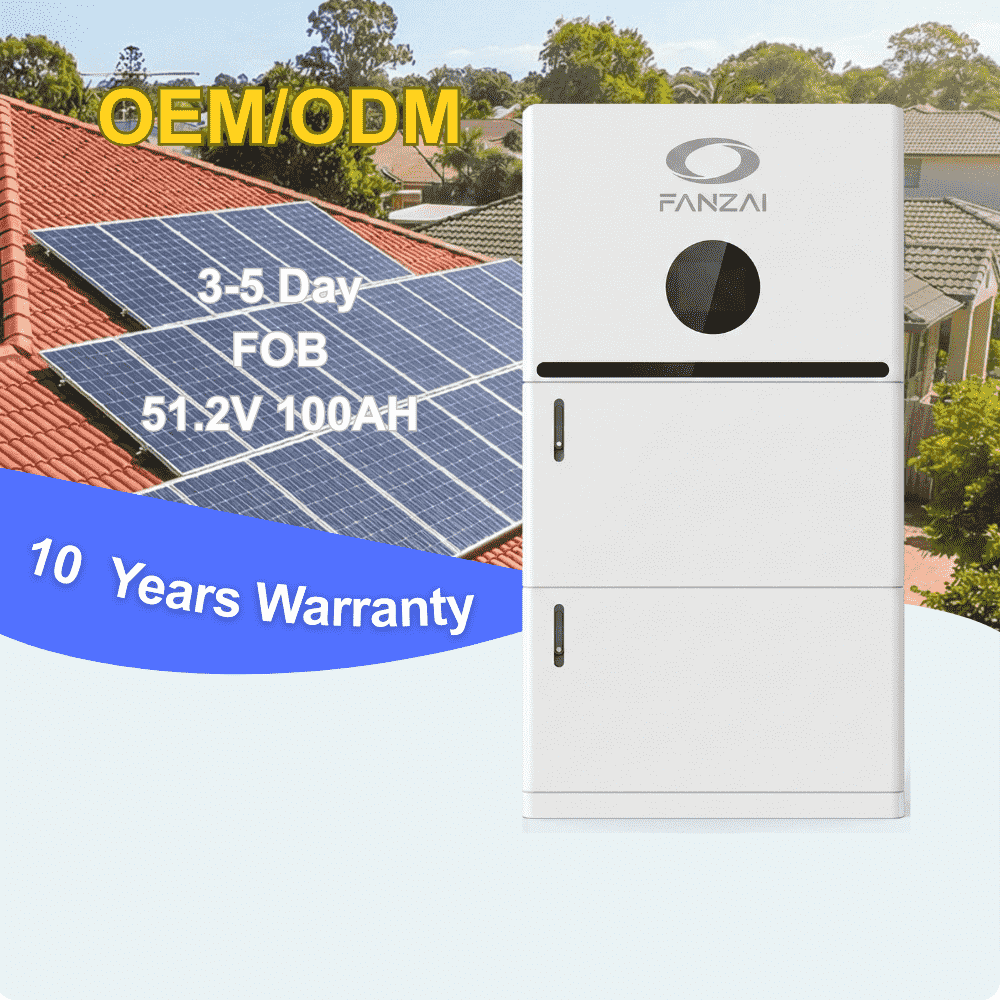

Residential Energy Storage System (FZ-RES-W/F1-10K)
Product Details
The FZ-RES redefines home energy by delivering substantial usable capacity, dependable 51.2V performance, and seamless expansion options—perfect for households looking to lower bills while staying powered through grid disruptions.
Product Advantage
Innovative residential power solution: Next-generation advanced lithium-ion battery energy storage system.
Flexible household storage: Rated energy options between 5.12 and 30.72 kWh to suit any residence.
Optimal on-demand energy: Provides 4.86–29.16 kWh of usable power whenever you need it.
Secure voltage stability: 44.8–57.6 Vdc operating range ensures steady and reliable power.
High-efficiency core system: Nominal 51.2 Vdc for exceptional energy management.
Superior cell endurance: 100 Ah ensures robust and sustained storage performance.
Fast and protected charging: Maximum 57.6 Vdc supported by built-in safety systems.
Strong high-current capability: 80A–160A nominal discharge for immediate power output.
Technical Parameters

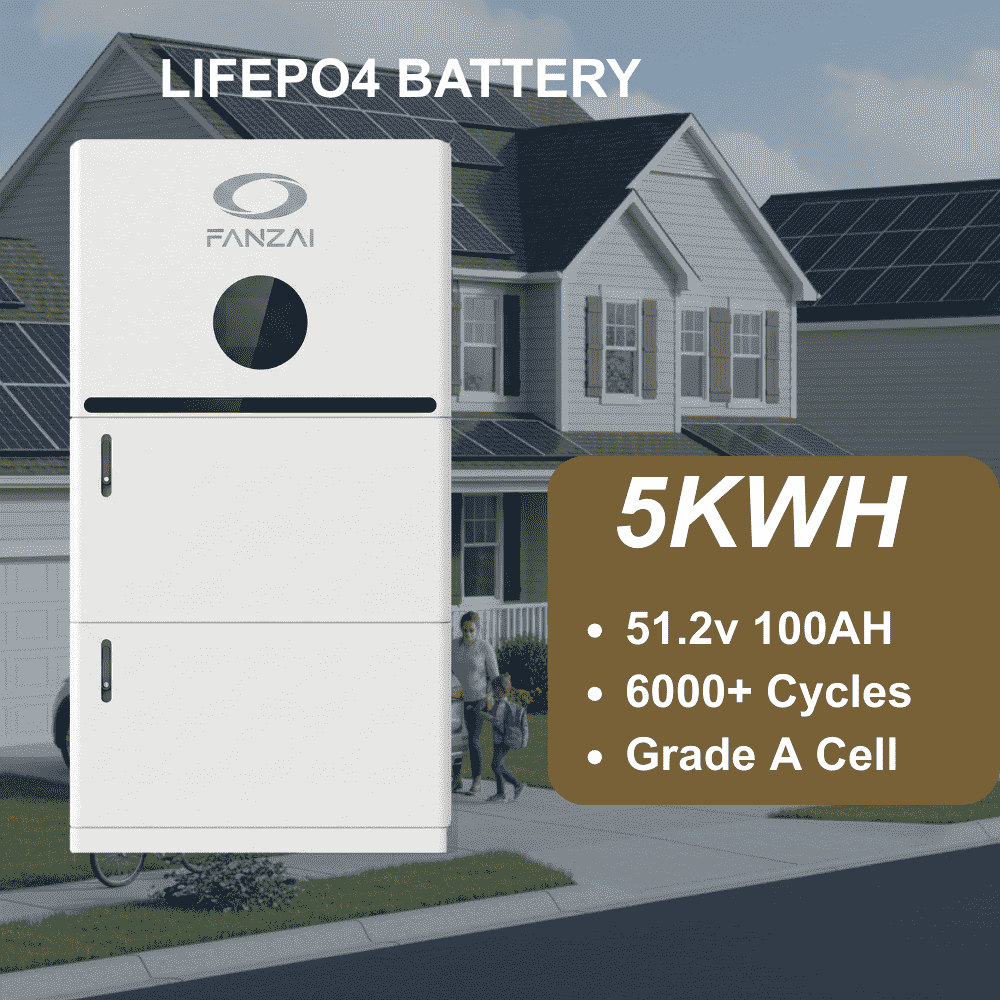

Feature | FZ-RES-W1-5K |
Battery Module | FZ-RES-W1-5K |
Total Energy | 5.12 kWh |
Usable Energy | 4.86 kWh |
Configuration | 16S |
Rated Capacity | 100 Ah |
Nominal Voltage | 51.2 V |
Voltage Range | 44.8 ~ 57.6 V |
Charge Voltage | 57.6 V |
Nominal Charge Current | 50 A |
Nominal Discharge Current | 80 A |
Peak Short-circuit Current | 474.17 A |
DOD | 95% |
Cycle Life | ≥8000 cycles |
Communication Interface | CAN / RS485 / WiFi |
Max Parallel Quantity | 6 |
Cooling Method | Natural Cooling |
Installation Method | Wall-mounted / Floor-standing |
Operating Temperature (Charge) | 0 ~ 52 ℃ |
Operating Temperature (Discharge) | -15 ~ 52 ℃ |
Dimensions (H×W×D) | 640 × 420 × 160 mm |
Net Weight | 45 kg |
IP Rating | IP20 |
Protection Class | Class I |
Application | Indoor |
Certifications | UN38.3 / CE-EMC / CE-RED / CB / IEC62619 |
Application scenarios

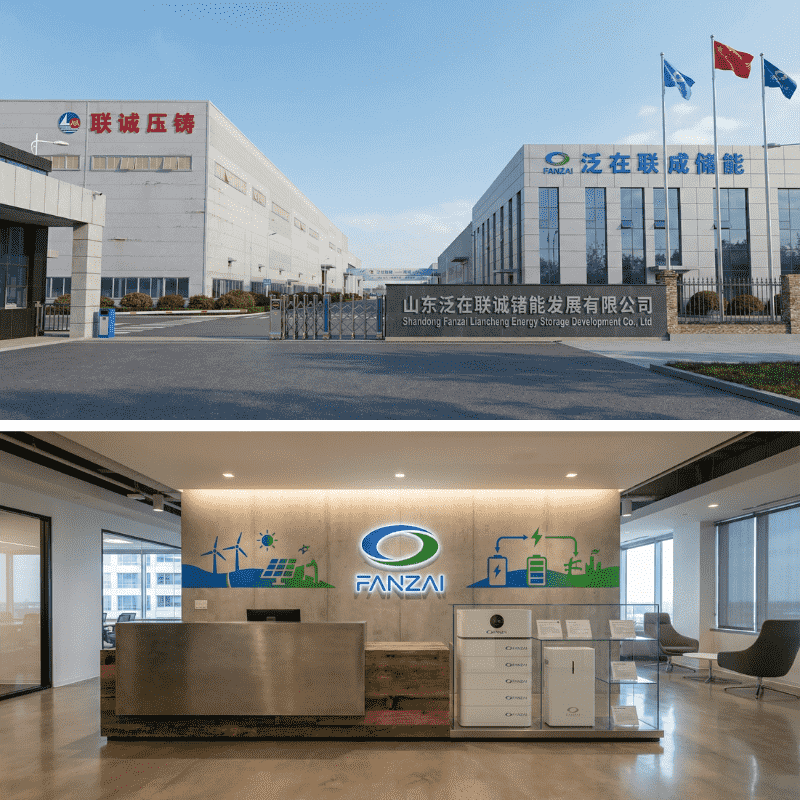

About Factory
