Solar Power Storage Batteries
Wide capacity range of 5.12 to 30.72 kWh adapts to individual household requirements and allows easy future upgrades.
Dependable power supply achieved with 51.2 V nominal rating and operating range of 44.8 to 57.6 V.
100 Ah high-capacity cells with 80A–160A discharge range ensure fast and powerful emergency power delivery.
Intelligent safety design supports rapid, secure charging while promoting environmentally sustainable cost efficiency.

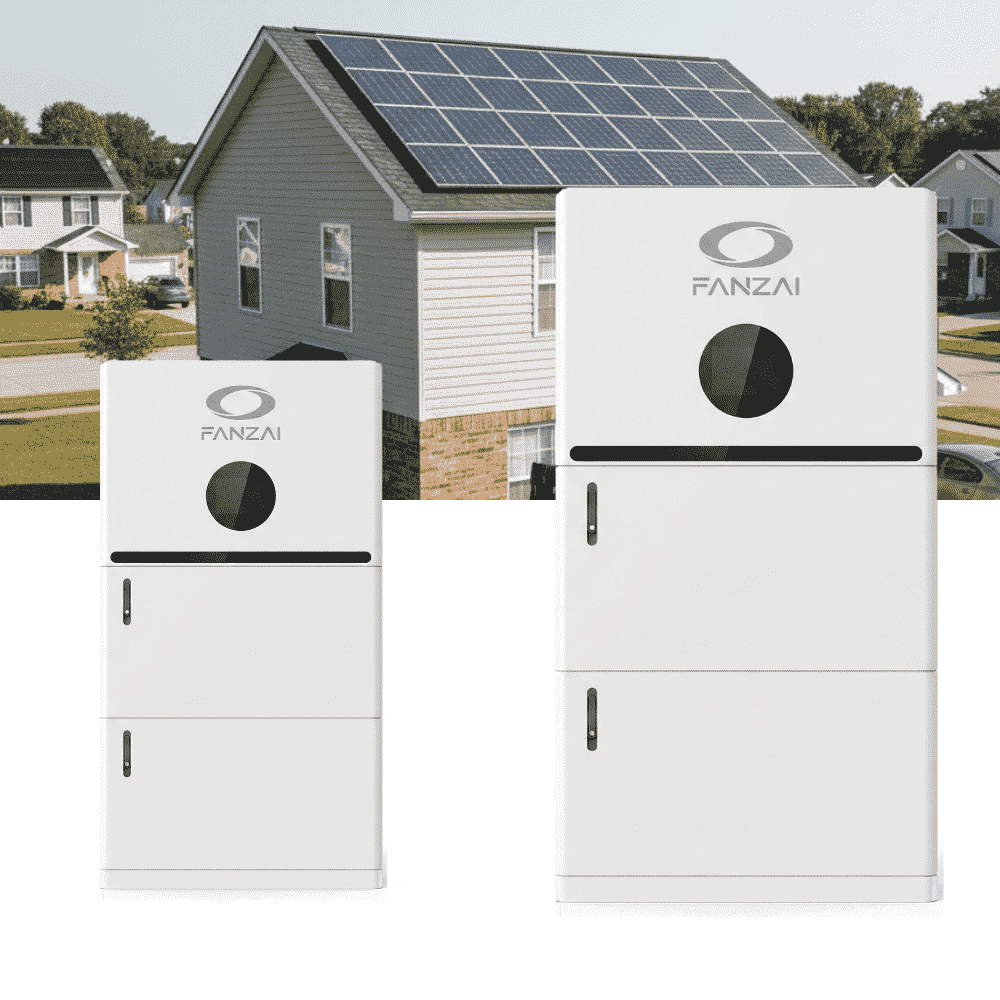

Residential Energy Storage System (FZ-RES-W/F1-10K)
Product Details
Built with user convenience, safety, and the environment in mind, the FZ-RES offers high usable capacity, a reliable 51.2V nominal voltage, and effortless scalability, making green energy accessible and blackout-proof.
Product Advantage
Redefining home energy: High-tech rechargeable lithium-ion BESS delivering next-gen residential storage.
Perfectly sized for homes: Energy capacities ranging from 5.12 kWh to 30.72 kWh for every household.
Full usable energy range: From 4.86 kWh up to 29.16 kWh available at any moment.
Uniform and dependable output: Operating voltage from 44.8 to 57.6 Vdc for stable performance.
Superior core performance: Operates at 51.2 Vdc nominal for top energy efficiency.
Heavy-duty battery cells: 100 Ah rating delivers exceptional long-term reliability.
Safe ultra-fast charging: Reaches 57.6 Vdc with advanced protective features.
Powerful discharge range: Nominal 80A to 160A ensures fast and strong energy delivery.
Technical Parameters
Feature | FZ-RES-W1-5K |
Battery Module | FZ-RES-W1-5K |
Total Energy | 5.12 kWh |
Usable Energy | 4.86 kWh |
Configuration | 16S |
Rated Capacity | 100 Ah |
Nominal Voltage | 51.2 V |
Voltage Range | 44.8 ~ 57.6 V |
Charge Voltage | 57.6 V |
Nominal Charge Current | 50 A |
Nominal Discharge Current | 80 A |
Peak Short-circuit Current | 474.17 A |
DOD | 95% |
Cycle Life | ≥8000 cycles |
Communication Interface | CAN / RS485 / WiFi |
Max Parallel Quantity | 6 |
Cooling Method | Natural Cooling |
Installation Method | Wall-mounted / Floor-standing |
Operating Temperature (Charge) | 0 ~ 52 ℃ |
Operating Temperature (Discharge) | -15 ~ 52 ℃ |
Dimensions (H×W×D) | 640 × 420 × 160 mm |
Net Weight | 45 kg |
IP Rating | IP20 |
Protection Class | Class I |
Application | Indoor |
Certifications | UN38.3 / CE-EMC / CE-RED / CB / IEC62619 |
Application scenarios

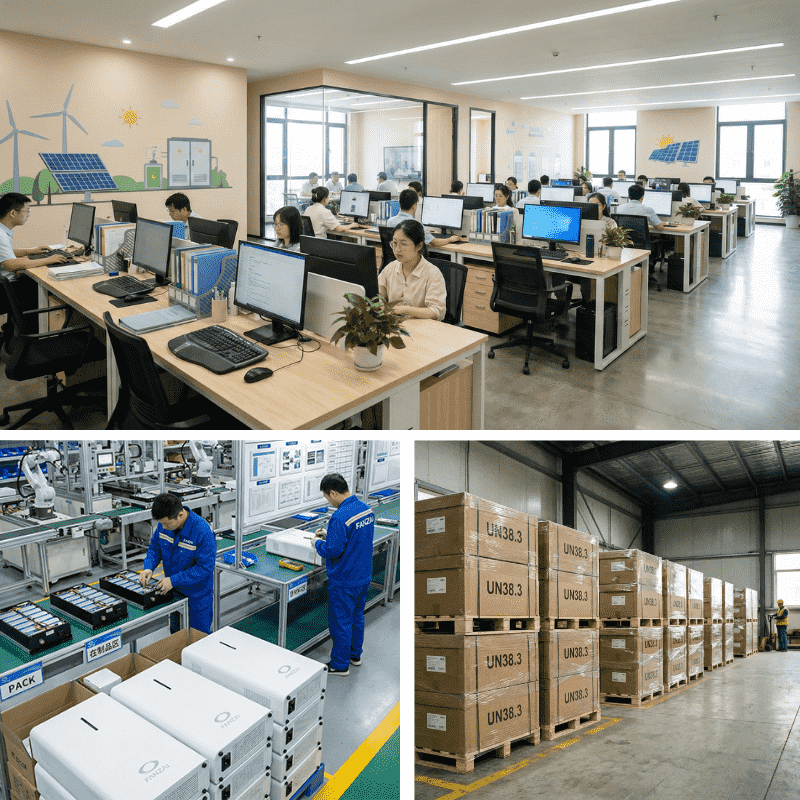

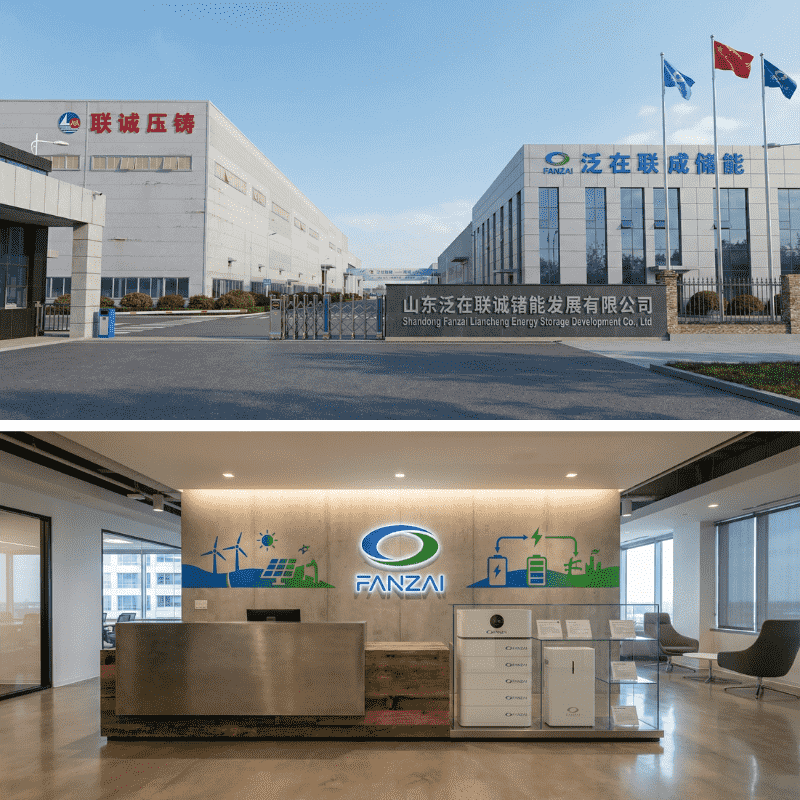

About Factory
