Plug-and-play Energy Storage System
Modular capacity from 5.12–30.72 kWh fits different household demands and enables effortless future upgrades.
51.2 V nominal voltage and a broad 44.8–57.6 V operating range guarantee steady and trustworthy power delivery.
Strong backup performance with 100 Ah cells and discharge currents ranging from 80A to 160A for instant power delivery.

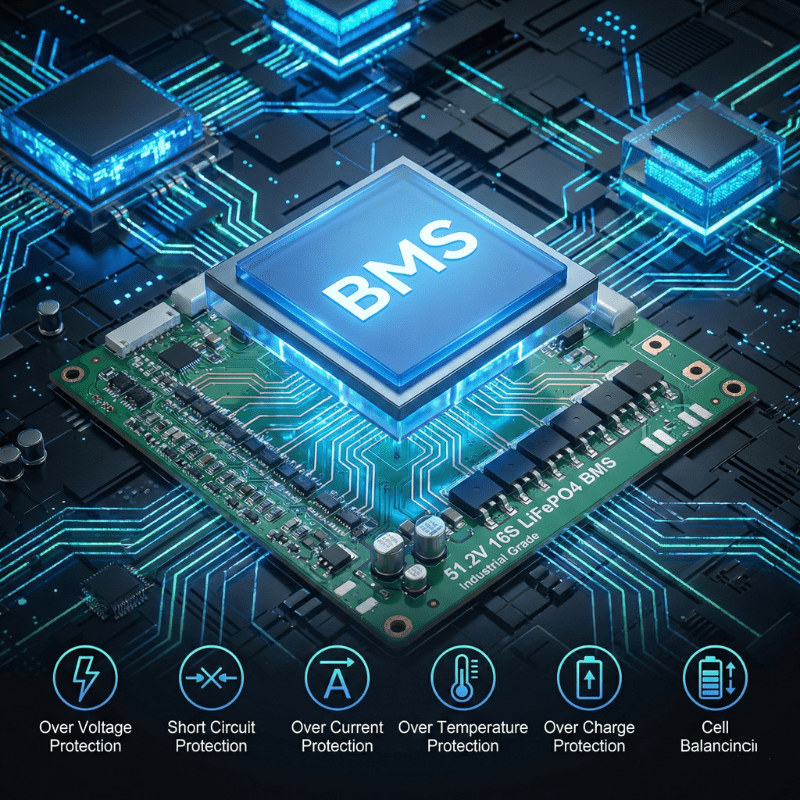

Advanced built-in safeguards support quick and secure charging, delivering sustainable cost reduction for electricity usage.

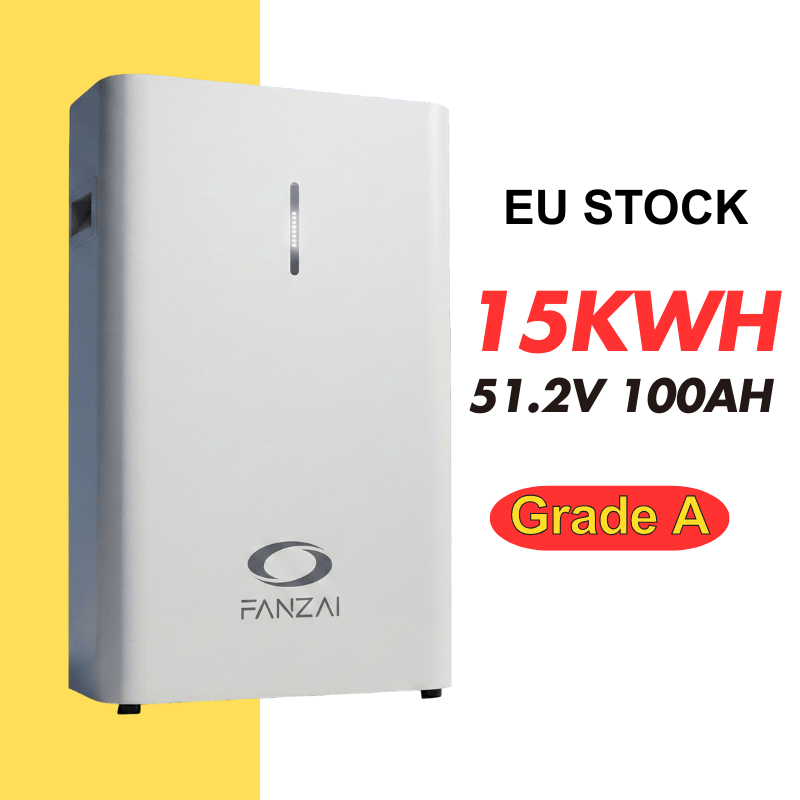

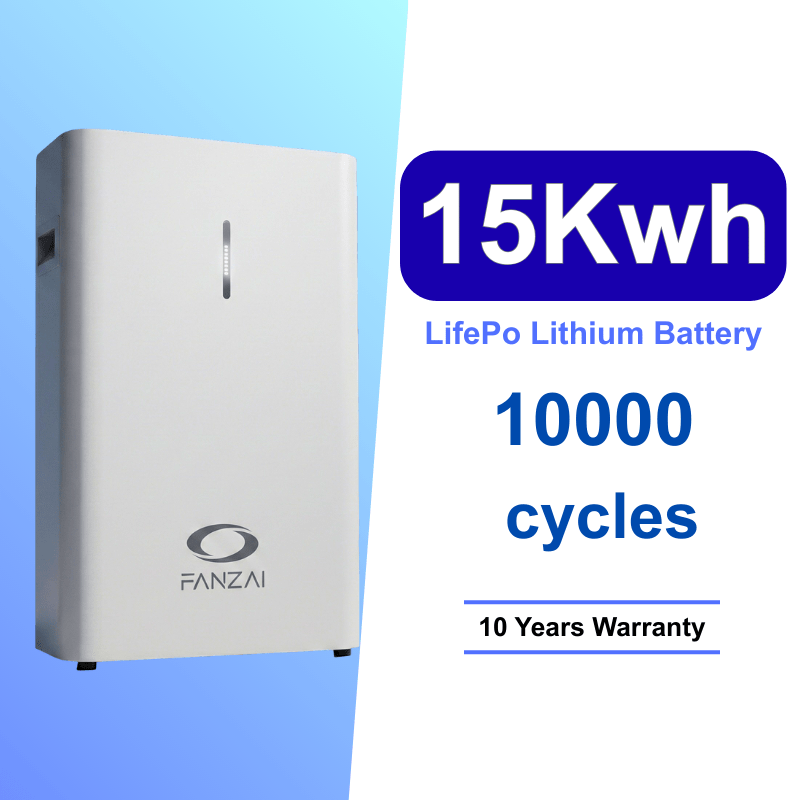

Residential Energy Storage System (FZ-RES-W/F1-10K)
Product Details
With the FZ-RES system, families can embrace eco-friendly energy thanks to its substantial usable capacity, consistent 51.2V nominal voltage, and easy-to-scale design—perfect for reducing bills and enjoying blackout-proof power.
Product Advantage
Next-generation residential energy: Innovative lithium-ion battery storage system transforming how homes use and store power.
Personalized energy storage: Choose from 5.12 kWh to 30.72 kWh to fit every household perfectly.
Full usable capacity at hand: Enjoy 4.86 kWh to 29.16 kWh of readily accessible power.
Reliable voltage stability: Operating between 44.8–57.6 Vdc guarantees consistent energy output.
Superior energy core: Nominal voltage of 51.2 Vdc ensures top-tier energy performance.
Strong battery cells: 100 Ah per cell guarantees long-term and robust energy storage.
Safe high-speed charging: Charges up to 57.6 Vdc with multiple integrated protection systems.
Robust power delivery: Nominal discharge currents of 80A to 160A for immediate energy supply.
Technical Parameters
Feature | FZ-RES-W1-5K |
Battery Module | FZ-RES-W1-5K |
Total Energy | 5.12 kWh |
Usable Energy | 4.86 kWh |
Configuration | 16S |
Rated Capacity | 100 Ah |
Nominal Voltage | 51.2 V |
Voltage Range | 44.8 ~ 57.6 V |
Charge Voltage | 57.6 V |
Nominal Charge Current | 50 A |
Nominal Discharge Current | 80 A |
Peak Short-circuit Current | 474.17 A |
DOD | 95% |
Cycle Life | ≥8000 cycles |
Communication Interface | CAN / RS485 / WiFi |
Max Parallel Quantity | 6 |
Cooling Method | Natural Cooling |
Installation Method | Wall-mounted / Floor-standing |
Operating Temperature (Charge) | 0 ~ 52 ℃ |
Operating Temperature (Discharge) | -15 ~ 52 ℃ |
Dimensions (H×W×D) | 640 × 420 × 160 mm |
Net Weight | 45 kg |
IP Rating | IP20 |
Protection Class | Class I |
Application | Indoor |
Certifications | UN38.3 / CE-EMC / CE-RED / CB / IEC62619 |
Application scenarios

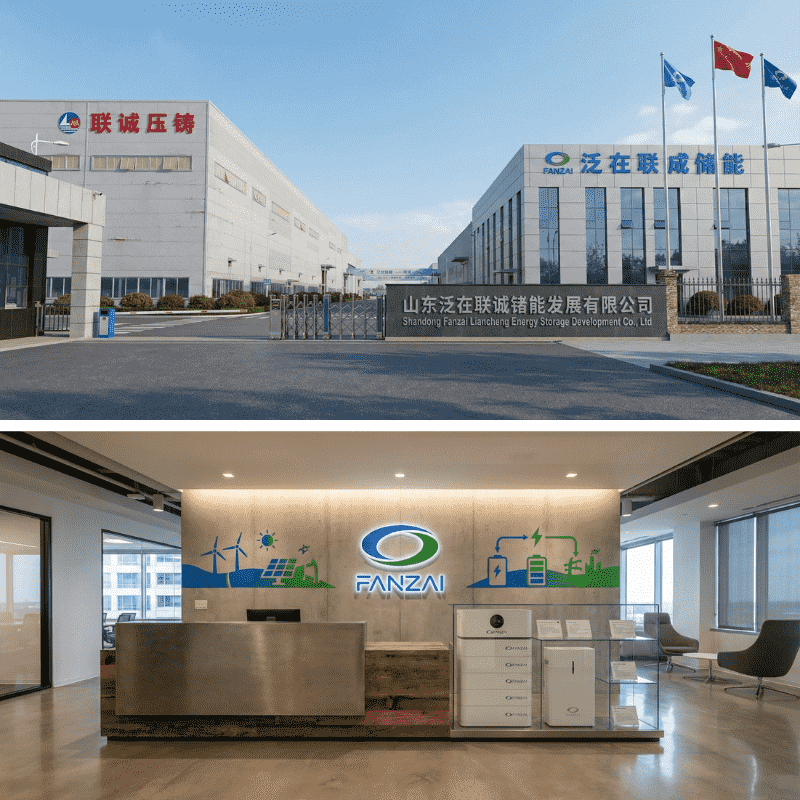

About Factory
