All-in-one ESS
Adjustable capacity levels of 5.12 to 30.72 kWh meet a wide range of home energy needs while allowing simple future expansion.
Operating reliably across 44.8–57.6 V with a 51.2 V nominal rating, ensuring stable and consistent energy output.
High-performance 100 Ah cells with 80A–160A discharge capability ensure fast and powerful backup power supply.
Smart safety mechanisms allow fast, protected charging while sustainably lowering electricity costs.

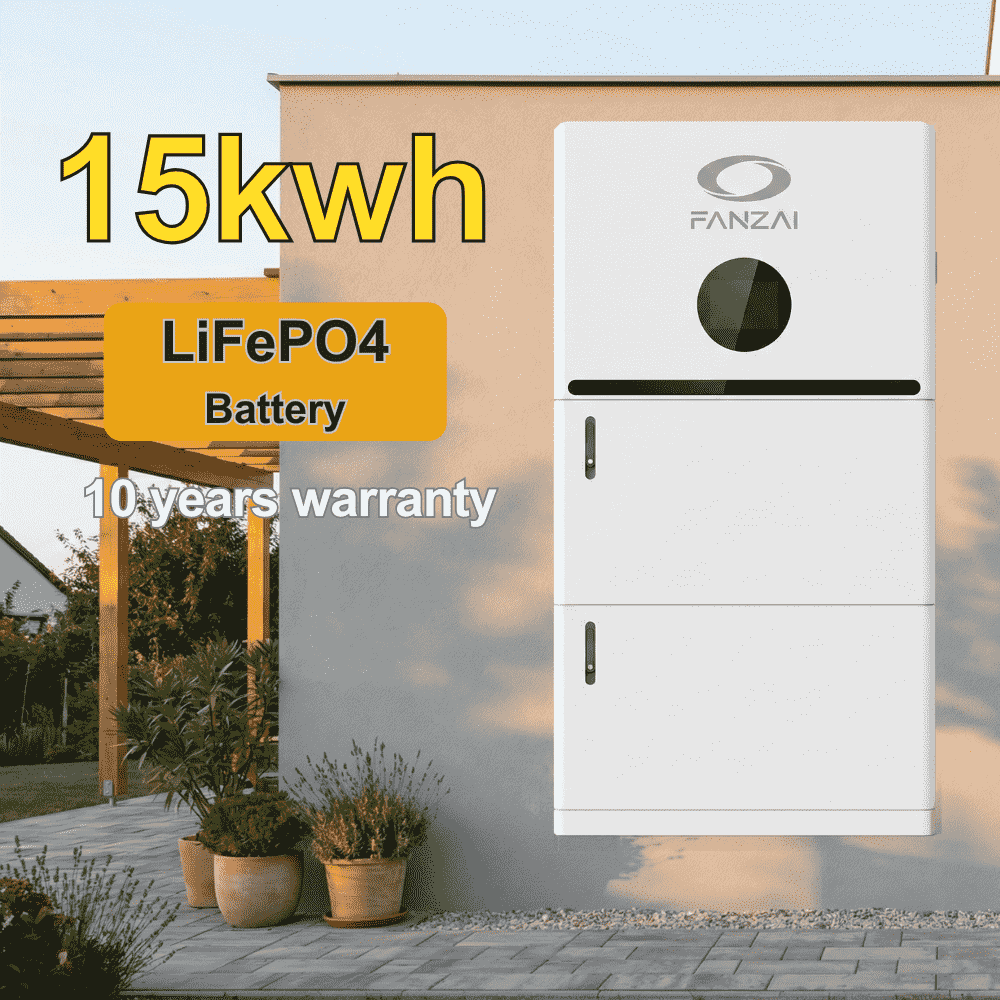

Residential Energy Storage System (FZ-RES-W/F1-10K)
Product Details
The FZ-RES turns homes into smart energy centers by offering high usable capacity, dependable 51.2V voltage, and flexible expansion, helping families save on electricity while staying powered during grid failures.
Product Advantage
Advanced home power innovation: High-performance rechargeable lithium-ion energy storage system reshaping household energy.

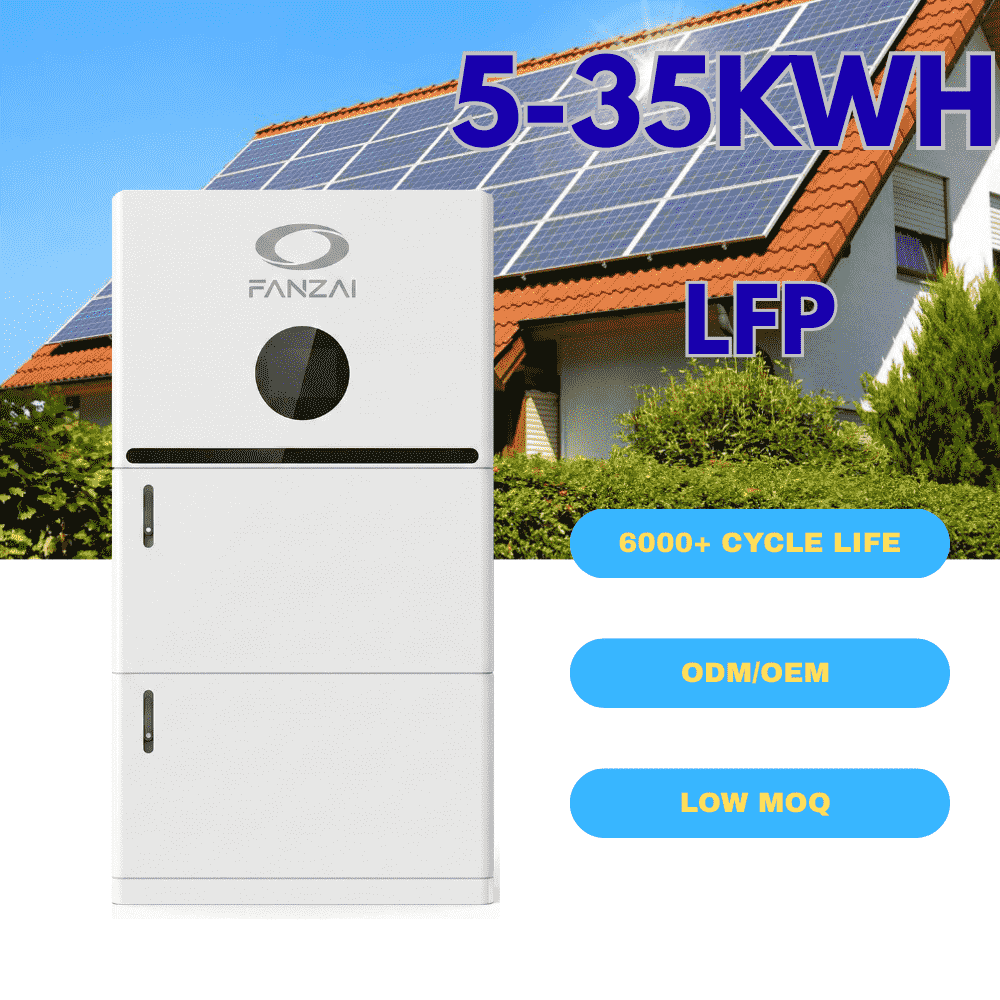

Scalable capacity solutions: Energy ratings from 5.12 kWh to 30.72 kWh tailored to suit diverse home sizes.
Optimal usable energy delivery: Provides between 4.86 and 29.16 kWh of usable power instantly.
Steady DC voltage operation: 44.8–57.6 Vdc range delivers secure and uniform power.
Advanced core efficiency: Operates at nominal 51.2 Vdc for optimal energy handling.
Heavy-duty cell performance: 100 Ah capacity for sustained and dependable storage.

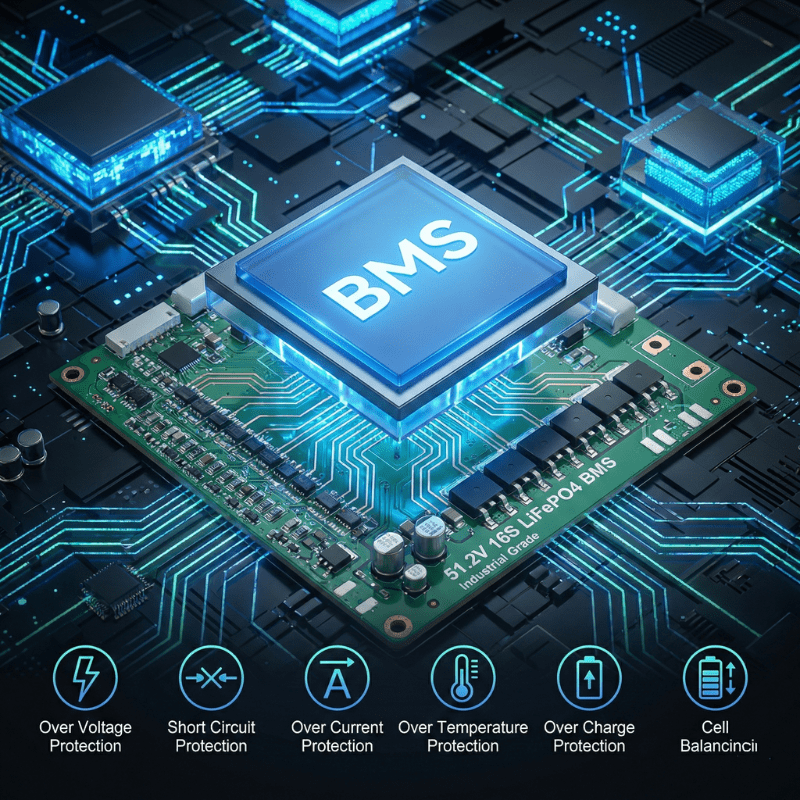

Secure fast-charge capability: Achieves 57.6 Vdc max with full built-in safety protections.
Strong instant discharge: Supports 80A–160A nominal current for fast and reliable power.
Technical Parameters
Feature | FZ-RES-W1-5K |
Battery Module | FZ-RES-W1-5K |
Total Energy | 5.12 kWh |
Usable Energy | 4.86 kWh |
Configuration | 16S |
Rated Capacity | 100 Ah |
Nominal Voltage | 51.2 V |
Voltage Range | 44.8 ~ 57.6 V |
Charge Voltage | 57.6 V |
Nominal Charge Current | 50 A |
Nominal Discharge Current | 80 A |
Peak Short-circuit Current | 474.17 A |
DOD | 95% |

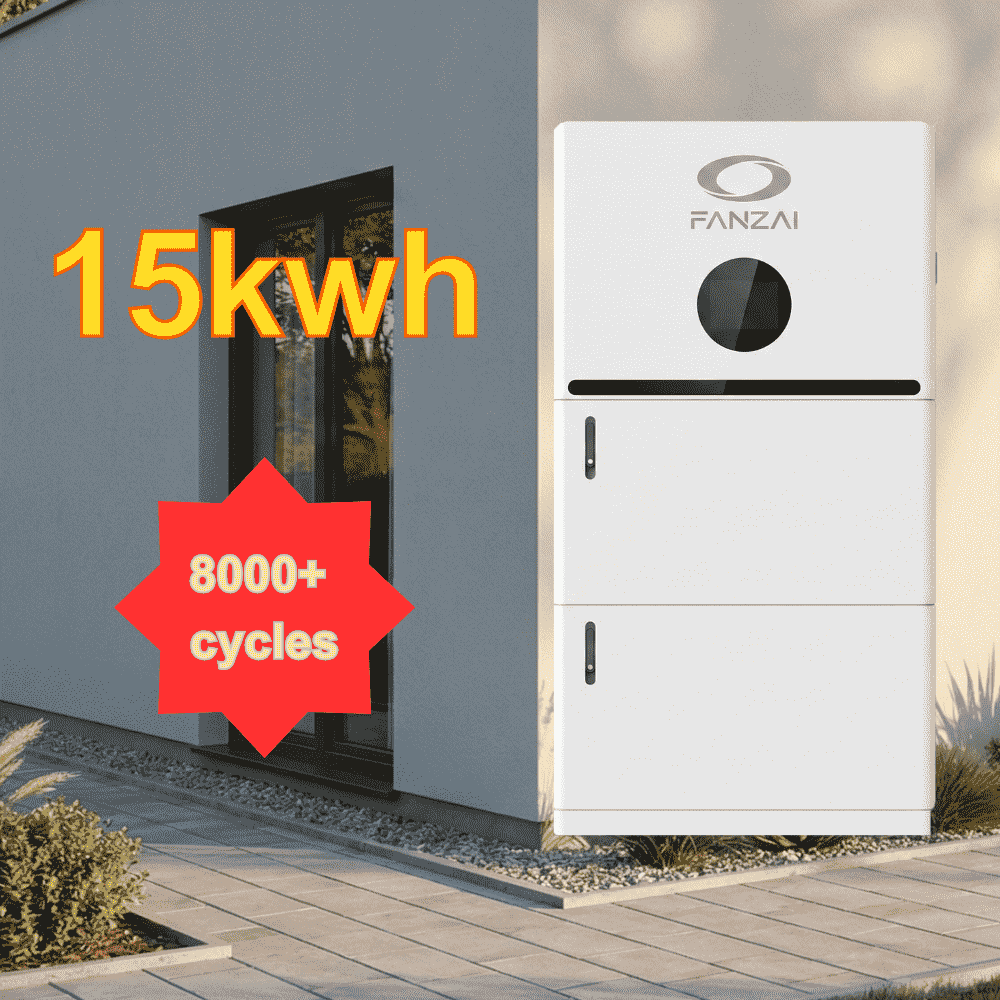

Cycle Life | ≥8000 cycles |
Communication Interface | CAN / RS485 / WiFi |
Max Parallel Quantity | 6 |
Cooling Method | Natural Cooling |
Installation Method | Wall-mounted / Floor-standing |
Operating Temperature (Charge) | 0 ~ 52 ℃ |
Operating Temperature (Discharge) | -15 ~ 52 ℃ |
Dimensions (H×W×D) | 640 × 420 × 160 mm |
Net Weight | 45 kg |
IP Rating | IP20 |
Protection Class | Class I |
Application | Indoor |
Certifications | UN38.3 / CE-EMC / CE-RED / CB / IEC62619 |
