Solar Panel Home Battery Storage
Customizable capacity options between 5.12 and 30.72 kWh address various home energy demands with built-in future expandability.
Reliable power delivery with 51.2 V nominal voltage and an operating window from 44.8 V to 57.6 V.
High-discharge performance with 100 Ah cells offering 80A to 160A output for instant and reliable backup.
Advanced safety systems enable rapid and protected charging while helping sustainably minimize electricity costs.

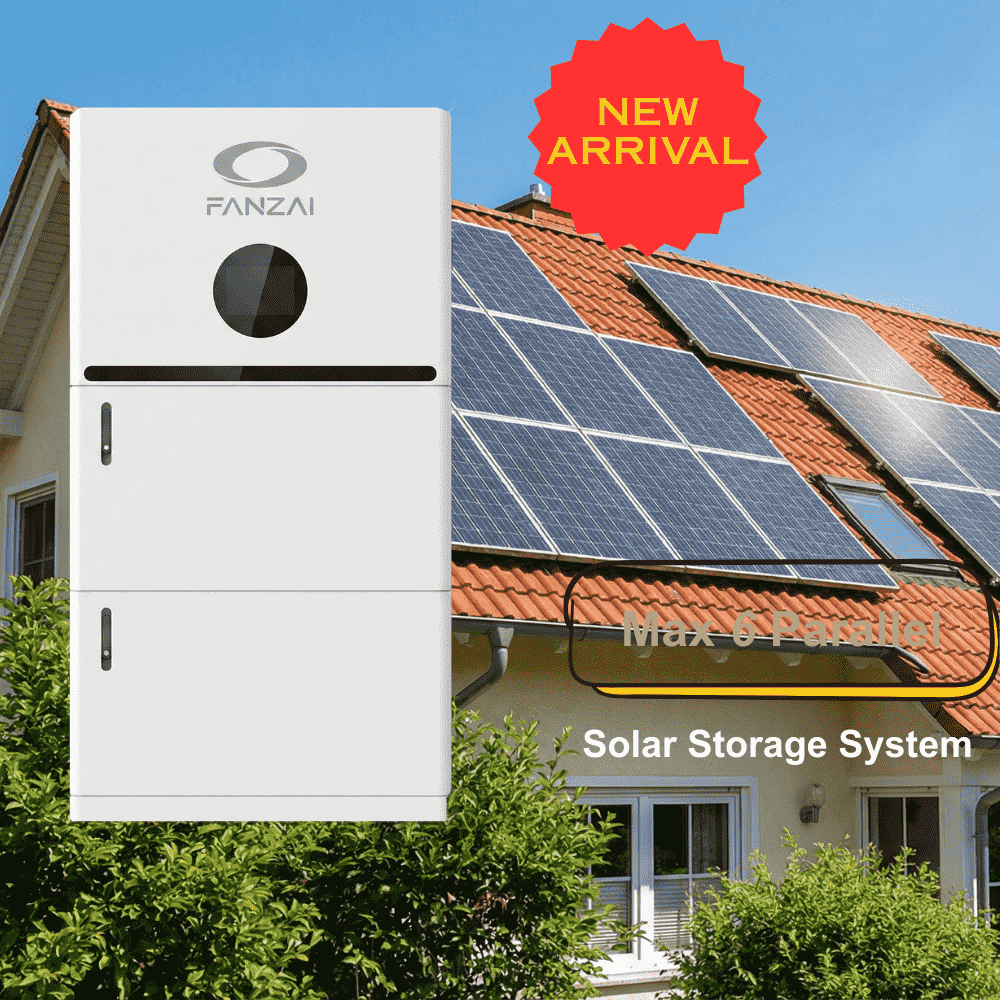

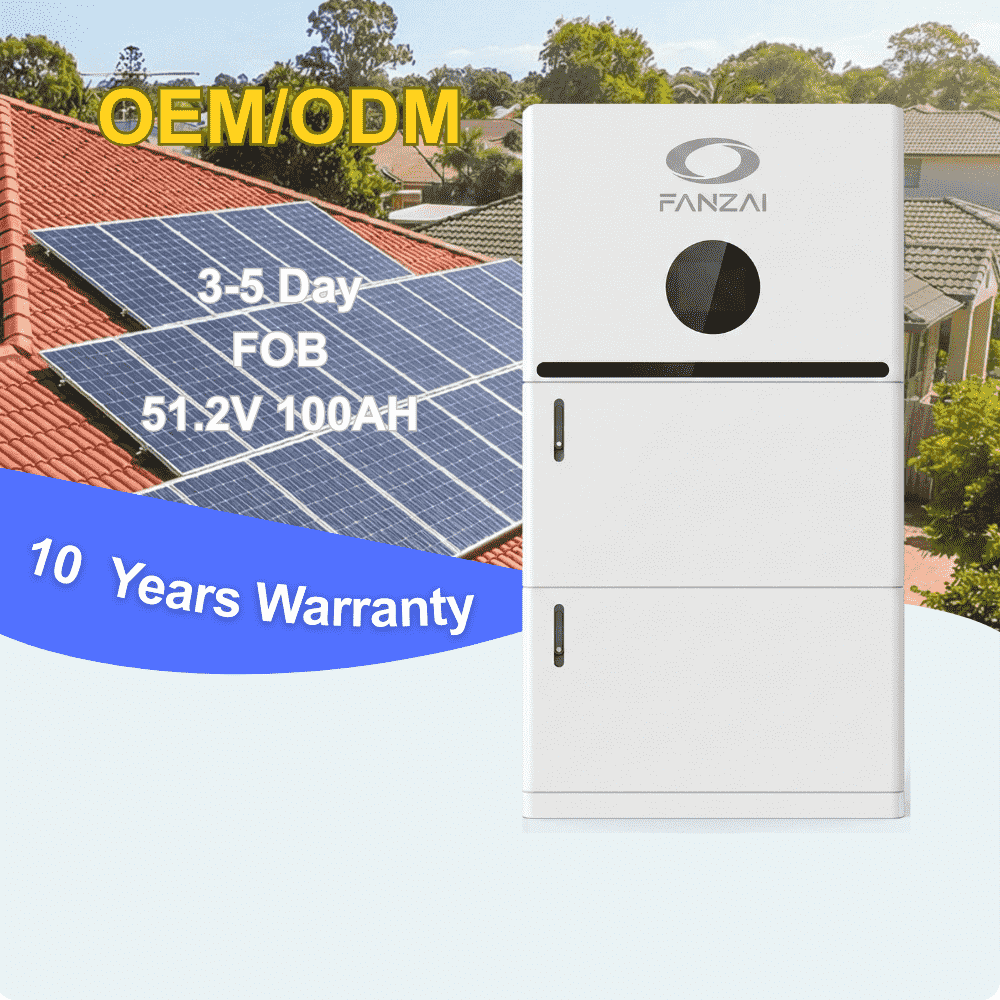

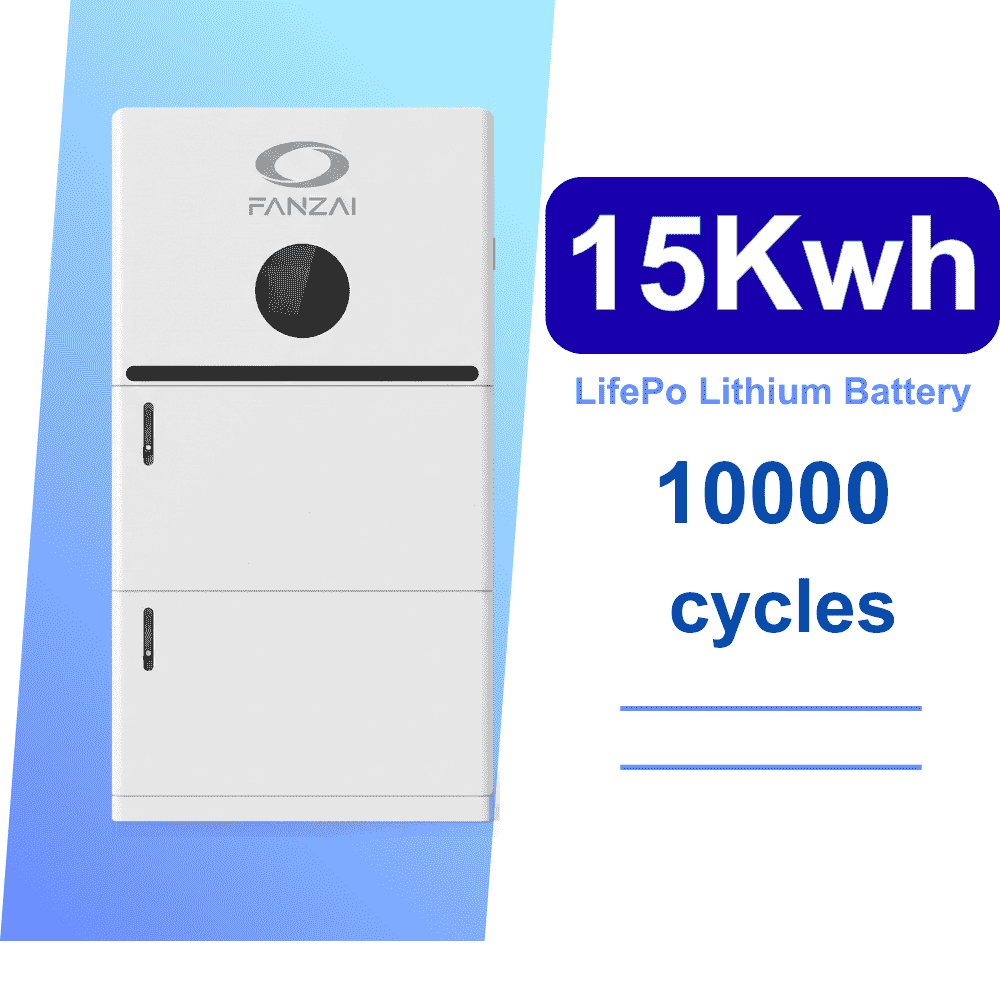

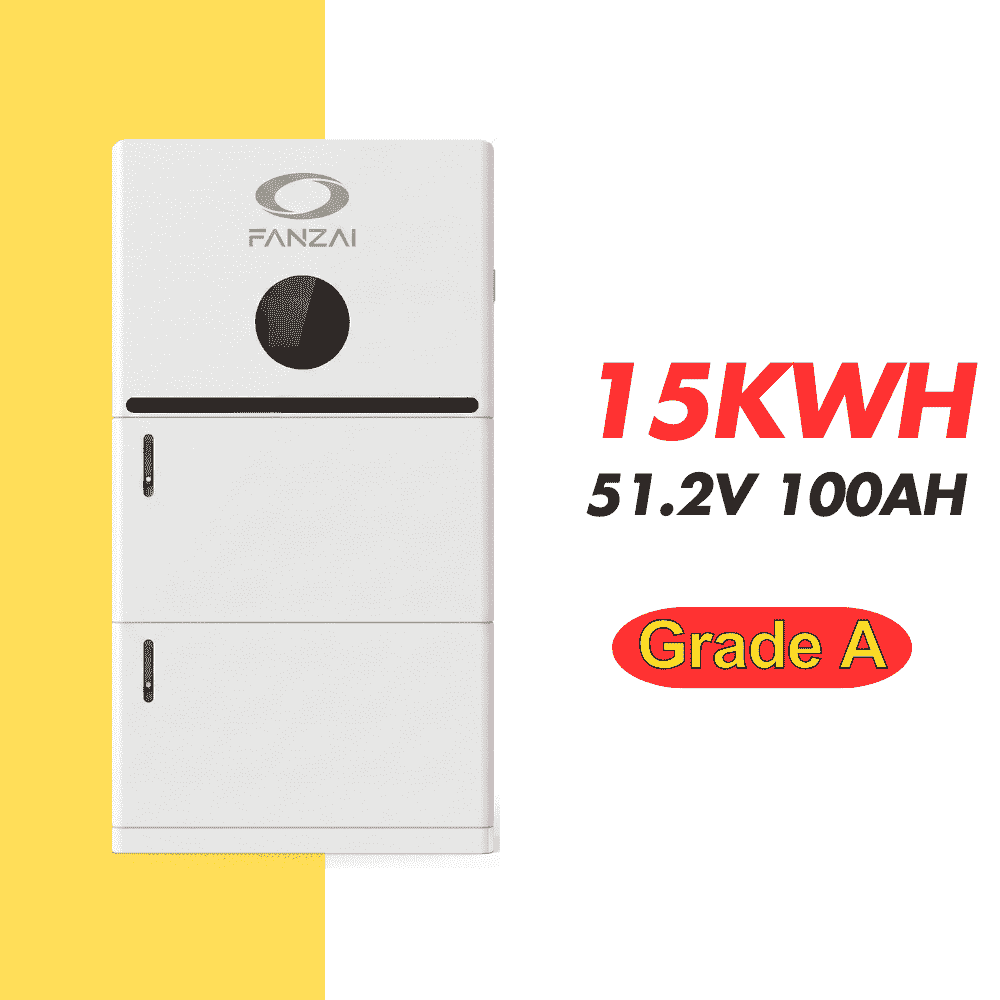

Residential Energy Storage System (FZ-RES-W/F1-10K)
Product Details
The thoughtfully designed FZ-RES system gives homes high usable capacity, rock-solid 51.2V voltage stability, and easy scalability, transforming residences into efficient energy hubs that reduce bills and provide blackout resilience.
Product Advantage
Transformative home energy tech: Cutting-edge rechargeable lithium-ion battery storage system for the modern household.
Adaptable capacity selection: Energy storage ranging from 5.12 to 30.72 kWh to meet all household demands.
Maximum available energy: Enjoy usable capacity ranging from 4.86 kWh to 29.16 kWh.
Reliable and steady operation: 44.8–57.6 Vdc voltage range for secure and uniform power.
Advanced energy management: Nominal 51.2 Vdc core delivers outstanding performance.
Enduring cell design: 100 Ah rating guarantees strong and reliable energy storage.

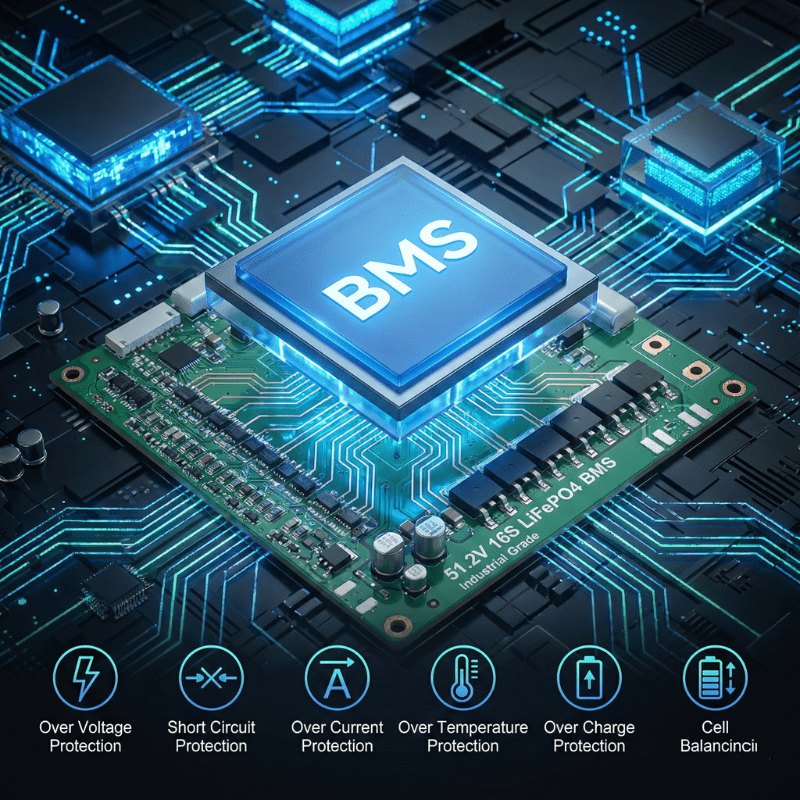

High-speed safe charging: Charges to 57.6 Vdc maximum with multiple safety layers.
High-performance discharge: Delivers 80A–160A nominal current for instant energy access.
Technical Parameters
Feature | FZ-RES-W1-5K |
Battery Module | FZ-RES-W1-5K |
Total Energy | 5.12 kWh |
Usable Energy | 4.86 kWh |
Configuration | 16S |
Rated Capacity | 100 Ah |
Nominal Voltage | 51.2 V |
Voltage Range | 44.8 ~ 57.6 V |
Charge Voltage | 57.6 V |
Nominal Charge Current | 50 A |
Nominal Discharge Current | 80 A |
Peak Short-circuit Current | 474.17 A |
DOD | 95% |
Cycle Life | ≥8000 cycles |
Communication Interface | CAN / RS485 / WiFi |
Max Parallel Quantity | 6 |
Cooling Method | Natural Cooling |
Installation Method | Wall-mounted / Floor-standing |
Operating Temperature (Charge) | 0 ~ 52 ℃ |
Operating Temperature (Discharge) | -15 ~ 52 ℃ |
Dimensions (H×W×D) | 640 × 420 × 160 mm |
Net Weight | 45 kg |
IP Rating | IP20 |
Protection Class | Class I |
Application | Indoor |
Certifications | UN38.3 / CE-EMC / CE-RED / CB / IEC62619 |
Application scenarios

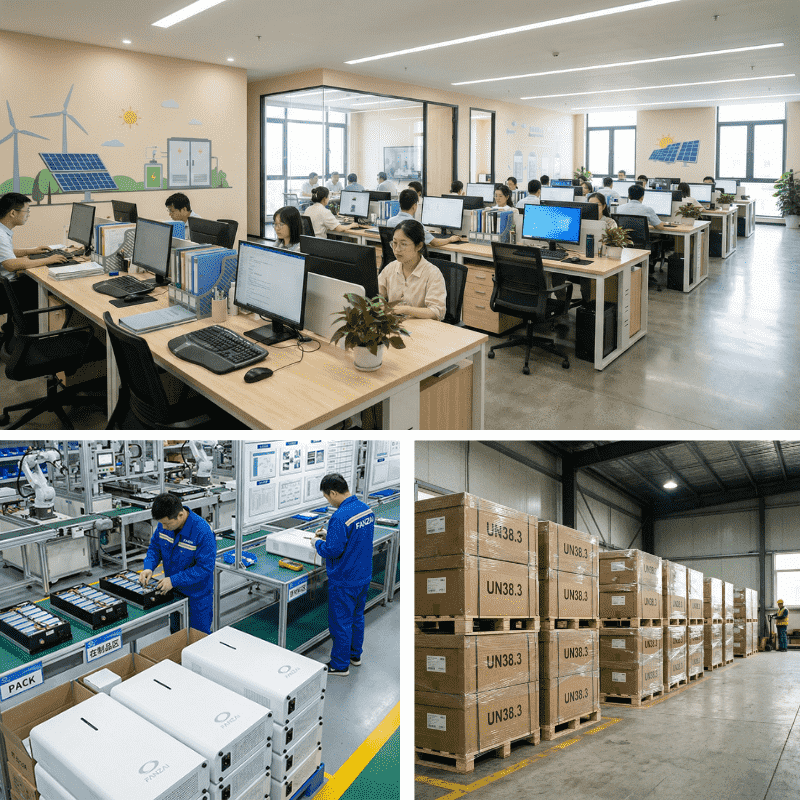

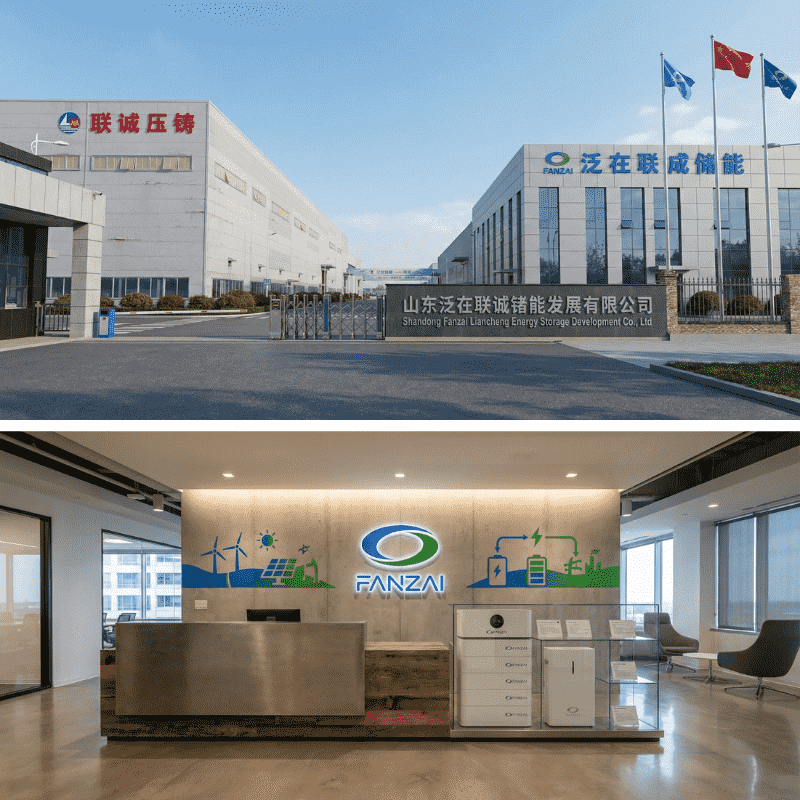

About Factory
